Production run: Circular disc & pseudo-newtonian Paczynski Wiita potential#
This example demonstrates how to run a smoothed particle hydrodynamics (SPH) simulation of a circular disc orbiting around a central point mass pseudo-newtonian potential.
The simulation models:
A central star with a given mass and accretion radius
A gaseous disc with specified mass, inner/outer radii, and vertical structure
Artificial viscosity for angular momentum transport
Locally isothermal equation of state
Also this simulation feature rolling dumps (see purge_old_dumps function) to save disk space.
This example is the accumulation of 3 files in a single one to showcase the complete workflow.
The actual run script (runscript.py)
Plot generation (make_plots.py)
Animation from the plots (plot_to_gif.py)
On a cluster or laptop, one can run the code as follows:
mpirun <your parameters> ./shamrock --sycl-cfg 0:0 --loglevel 1 --rscript runscript.py
then after the run is done (or while it is running), one can run the following to generate the plots:
python make_plots.py
Runscript (runscript.py)#
The runscript is the actual simulation with on the fly analysis & rolling dumps
44 import glob
45 import json
46 import os # for makedirs
47
48 import numpy as np
49
50 import shamrock
51
52 # If we use the shamrock executable to run this script instead of the python interpreter,
53 # we should not initialize the system as the shamrock executable needs to handle specific MPI logic
54 if not shamrock.sys.is_initialized():
55 shamrock.change_loglevel(1)
56 shamrock.sys.init("0:0")
-> modified loglevel to 0 enabled log types :
log status :
- Loglevel: 1, enabled log types :
[xxx] Info: xxx ( logger::info )
[xxx] : xxx ( logger::normal )
[xxx] Warning: xxx ( logger::warn )
[xxx] Error: xxx ( logger::err )
Use shamrock documentation style for matplotlib
60 shamrock.matplotlib.set_shamrock_mpl_style()
Setup units
66 si = shamrock.UnitSystem()
67 sicte = shamrock.Constants(si)
68 codeu = shamrock.UnitSystem(
69 unit_time=sicte.year(),
70 unit_length=sicte.au(),
71 unit_mass=sicte.sol_mass(),
72 )
73 ucte = shamrock.Constants(codeu)
74 G = ucte.G()
List parameters
79 # Resolution
80 Npart = 100000
81
82 # Domain decomposition parameters
83 scheduler_split_val = int(1.0e7) # split patches with more than 1e7 particles
84 scheduler_merge_val = scheduler_split_val // 16
85
86 # Dump and plot frequency and duration of the simulation
87 dump_freq_stop = 2
88 plot_freq_stop = 1
89
90 dt_stop = 0.01
91 nstop = 30
92
93 # The list of times at which the simulation will pause for analysis / dumping
94 t_stop = [i * dt_stop for i in range(nstop + 1)]
95
96
97 # Sink parameters
98 center_mass = 1.0
99 center_pos = (0.0, 0.0, 0.0)
100 center_racc = 0.1
101
102 # Disc parameter
103 disc_mass = 0.01 # sol mass
104 rout = 10.0 # au
105 rin = 1.0 # au
106 H_r_0 = 0.05
107 q = 0.5
108 p = 3.0 / 2.0
109 r0 = 1.0
110
111 # Viscosity parameter
112 alpha_AV = 1.0e-3 / 0.08
113 alpha_u = 1.0
114 beta_AV = 2.0
115
116 # Integrator parameters
117 C_cour = 0.3
118 C_force = 0.25
119
120 sim_folder = f"_to_trash/circular_disc_pn_pot_{Npart}/"
121
122 dump_folder = sim_folder + "dump/"
123 analysis_folder = sim_folder + "analysis/"
124 plot_folder = analysis_folder + "plots/"
125
126 dump_prefix = dump_folder + "dump_"
127
128
129 # Disc profiles
130 def sigma_profile(r):
131 sigma_0 = 1.0 # We do not care as it will be renormalized
132 return sigma_0 * (r / r0) ** (-p)
133
134
135 def kep_profile(r):
136 return (G * center_mass / r) ** 0.5
137
138
139 def omega_k(r):
140 return kep_profile(r) / r
141
142
143 def cs_profile(r):
144 cs_in = (H_r_0 * r0) * omega_k(r0)
145 return ((r / r0) ** (-q)) * cs_in
Create the dump directory if it does not exist
150 if shamrock.sys.world_rank() == 0:
151 os.makedirs(sim_folder, exist_ok=True)
152 os.makedirs(dump_folder, exist_ok=True)
153 os.makedirs(analysis_folder, exist_ok=True)
154 os.makedirs(plot_folder, exist_ok=True)
Utility functions and quantities deduced from the base one
159 # Deduced quantities
160 pmass = disc_mass / Npart
161
162 bsize = rout * 2
163 bmin = (-bsize, -bsize, -bsize)
164 bmax = (bsize, bsize, bsize)
165
166 cs0 = cs_profile(r0)
167
168
169 def rot_profile(r):
170 return ((kep_profile(r) ** 2) - (2 * p + q) * cs_profile(r) ** 2) ** 0.5
171
172
173 def H_profile(r):
174 H = cs_profile(r) / omega_k(r)
175 # fact = (2.**0.5) * 3. # factor taken from phantom, to fasten thermalizing
176 fact = 1.0
177 return fact * H
Start the context The context holds the data of the code We then init the layout of the field (e.g. the list of fields used by the solver)
185 ctx = shamrock.Context()
186 ctx.pdata_layout_new()
Attach a SPH model to the context
191 model = shamrock.get_Model_SPH(context=ctx, vector_type="f64_3", sph_kernel="M4")
Dump handling
198 def get_vtk_dump_name(idump):
199 return dump_prefix + f"{idump:07}" + ".vtk"
200
201
202 def get_ph_dump_name(idump):
203 return dump_prefix + f"{idump:07}" + ".phdump"
204
205
206 dump_helper = shamrock.utils.dump.ShamrockDumpHandleHelper(model, dump_prefix)
Load the last dump if it exists, setup otherwise
212 def setup_model():
213 global disc_mass
214
215 # Generate the default config
216 cfg = model.gen_default_config()
217 cfg.set_artif_viscosity_ConstantDisc(alpha_u=alpha_u, alpha_AV=alpha_AV, beta_AV=beta_AV)
218 cfg.set_eos_locally_isothermalLP07(cs0=cs0, q=q, r0=r0)
219
220 cfg.add_ext_force_paczynski_wiita(center_mass, center_pos, center_racc)
221 cfg.add_kill_sphere(center=(0, 0, 0), radius=bsize) # kill particles outside the simulation box
222
223 cfg.set_units(codeu)
224 cfg.set_particle_mass(pmass)
225 # Set the CFL
226 cfg.set_cfl_cour(C_cour)
227 cfg.set_cfl_force(C_force)
228
229 # Enable this to debug the neighbor counts
230 # cfg.set_show_neigh_stats(True)
231
232 # Standard way to set the smoothing length (e.g. Price et al. 2018)
233 cfg.set_smoothing_length_density_based()
234
235 # Standard density based smoothing length but with a neighbor count limit
236 # Use it if you have large slowdowns due to giant particles
237 # I recommend to use it if you have a circumbinary discs as the issue is very likely to happen
238 # cfg.set_smoothing_length_density_based_neigh_lim(500)
239
240 cfg.set_save_dt_to_fields(True)
241
242 # Set the solver config to be the one stored in cfg
243 model.set_solver_config(cfg)
244
245 # Print the solver config
246 model.get_current_config().print_status()
247
248 # Init the scheduler & fields
249 model.init_scheduler(scheduler_split_val, scheduler_merge_val)
250
251 # Set the simulation box size
252 model.resize_simulation_box(bmin, bmax)
253
254 # Create the setup
255
256 setup = model.get_setup()
257 gen_disc = setup.make_generator_disc_mc(
258 part_mass=pmass,
259 disc_mass=disc_mass,
260 r_in=rin,
261 r_out=rout,
262 sigma_profile=sigma_profile,
263 H_profile=H_profile,
264 rot_profile=rot_profile,
265 cs_profile=cs_profile,
266 random_seed=666,
267 )
268
269 # Print the dot graph of the setup
270 print(gen_disc.get_dot())
271
272 # Apply the setup
273 setup.apply_setup(gen_disc)
274
275 # correct the momentum and barycenter of the disc to 0
276 analysis_momentum = shamrock.model_sph.analysisTotalMomentum(model=model)
277 total_momentum = analysis_momentum.get_total_momentum()
278
279 if shamrock.sys.world_rank() == 0:
280 print(f"disc momentum = {total_momentum}")
281
282 model.apply_momentum_offset((-total_momentum[0], -total_momentum[1], -total_momentum[2]))
283
284 # Correct the barycenter
285 analysis_barycenter = shamrock.model_sph.analysisBarycenter(model=model)
286 barycenter, disc_mass = analysis_barycenter.get_barycenter()
287
288 if shamrock.sys.world_rank() == 0:
289 print(f"disc barycenter = {barycenter}")
290
291 model.apply_position_offset((-barycenter[0], -barycenter[1], -barycenter[2]))
292
293 total_momentum = shamrock.model_sph.analysisTotalMomentum(model=model).get_total_momentum()
294
295 if shamrock.sys.world_rank() == 0:
296 print(f"disc momentum after correction = {total_momentum}")
297
298 barycenter, disc_mass = shamrock.model_sph.analysisBarycenter(model=model).get_barycenter()
299
300 if shamrock.sys.world_rank() == 0:
301 print(f"disc barycenter after correction = {barycenter}")
302
303 if not np.allclose(total_momentum, 0.0):
304 raise RuntimeError("disc momentum is not 0")
305 if not np.allclose(barycenter, 0.0):
306 raise RuntimeError("disc barycenter is not 0")
307
308 # Run a single step to init the integrator and smoothing length of the particles
309 # Here the htolerance is the maximum factor of evolution of the smoothing length in each
310 # Smoothing length iterations, increasing it affects the performance negatively but increases the
311 # convergence rate of the smoothing length
312 # this is why we increase it temporely to 1.3 before lowering it back to 1.1 (default value)
313 # Note that both ``change_htolerances`` can be removed and it will work the same but would converge
314 # more slowly at the first timestep
315
316 model.change_htolerances(coarse=1.3, fine=1.1)
317 model.timestep()
318 model.change_htolerances(coarse=1.1, fine=1.1)
319
320
321 dump_helper.load_last_dump_or(setup_model)
----- SPH Solver configuration -----
[
{
"artif_viscosity": {
"alpha_AV": 0.0125,
"alpha_u": 1.0,
"beta_AV": 2.0,
"type": "constant_disc"
},
"boundary_config": {
"bc_type": "free"
},
"cfl_config": {
"cfl_cour": 0.3,
"cfl_force": 0.25,
"cfl_multiplier_stiffness": 2.0,
"eta_sink": 0.05
},
"combined_dtdiv_divcurlv_compute": false,
"debug_dump_filename": "",
"do_debug_dump": false,
"dust_config": {
"ballabio_ts_limiter": false,
"drag_mode": {
"type": "none"
},
"evol_mode": {
"type": "none"
},
"mode": {
"type": "none"
}
},
"enable_particle_reordering": false,
"eos_config": {
"Tvec": "f64_3",
"cs0": 0.3141581172727782,
"eos_type": "locally_isothermal_lp07",
"q": 0.5,
"r0": 1.0
},
"epsilon_h": 1e-06,
"ext_force_config": {
"force_list": [
{
"Racc": 0.1,
"central_mass": 1.0,
"central_pos": [
0.0,
0.0,
0.0
],
"force_type": "paczynski_wiita"
}
]
},
"gpart_mass": 1e-07,
"h_iter_per_subcycles": 50,
"h_max_subcycles_count": 100,
"htol_up_coarse_cycle": 1.1,
"htol_up_fine_cycle": 1.1,
"kernel_id": "M4<f64>",
"mhd_config": {
"mhd_type": "none"
},
"neigh_cache_strategy": "two_stage",
"particle_killing": [
{
"center": [
0.0,
0.0,
0.0
],
"radius": 20.0,
"type": "sphere"
}
],
"particle_reordering_step_freq": 1000,
"save_dt_to_fields": true,
"scheduler_config": {
"merge_load_value": 0,
"split_load_value": 0
},
"self_grav_config": {
"softening_length": 1e-09,
"softening_mode": "plummer",
"type": "none"
},
"show_cfl_detail": false,
"show_ghost_stats": false,
"show_ghost_zone_graph": false,
"show_neigh_stats": false,
"smoothing_length_config": {
"type": "density_based"
},
"tree_reduction_level": 3,
"type_id": "sycl::vec<f64,3>",
"unit_sys": {
"unit_current": 1.0,
"unit_length": 149597870700.0,
"unit_lumint": 1.0,
"unit_mass": 1.98847e+30,
"unit_qte": 1.0,
"unit_temperature": 1.0,
"unit_time": 31557600.0
}
}
]
------------------------------------
Warning: make_generator_disc_mc: with the current EOS, cs_profile is ignored [SPHSetup][rank=0]
digraph G {
rankdir=LR;
node_0 [label="GeneratorMCDisc"];
node_2 [label="Simulation"];
node_0 -> node_2;
}
SPH setup: generating particles ...
SPH setup: Nstep = 100000 ( 1.0e+05 ) Ntotal = 100000 ( 1.0e+05 rank min = 2.8e+05 max = 1.0e+05) rate = 1.000000e+05 N.s^-1
SPH setup: the generation step took : 0.36989032200000005 s
SPH setup: final particle count = 100000 beginning injection ...
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 19.86 us (84.2%)
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.77 us (0.2%)
patch tree reduce : 1.21 us (0.1%)
gen split merge : 792.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 932.00 ns (0.1%)
LB compute : 823.13 us (98.5%)
LB move op cnt : 0
LB apply : 4.08 us (0.5%)
Info: patch count stable after 1 runs npatch = 1 [DataInserterUtility][rank=0]
Info: --------------------------------------------- [DataInserterUtility][rank=0]
SPH setup: injected 100000 / 100000 => 100.0% | ranks with patchs = 1 / 1 <- global loop -> (msg count : 0)
SPH setup: the injection step took : 0.011569724 s
Info: injection perf report: [SPH setup][rank=0]
+======+====================+=======+=============+=============+=============+
| rank | rank get (sum/max) | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+====================+=======+=============+=============+=============+
| 0 | 0.00s / 0.00s | 0.00s | 0.7% 0.0% | 2.15 GB | 2.15 GB |
+------+--------------------+-------+-------------+-------------+-------------+
SPH setup: the setup took : 0.39838845500000003 s
Info: defaulting reduction implementation to impl : {"implementation":"group_reduction","parameters":{"group_size":128}} [algs][rank=0]
disc momentum = (-6.905793783978494e-05, -1.465178221368862e-05, 0.0)
disc barycenter = (-0.006559467888094122, 0.01372027658515542, -0.00016426808316755622)
disc momentum after correction = (2.740998617314916e-18, 1.4365678785432934e-18, 0.0)
disc barycenter after correction = (-6.684784019730938e-16, 1.8251865947435664e-15, 5.296073502707513e-17)
---------------- t = 0, dt = 0 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.57 us (1.8%)
patch tree reduce : 1.04 us (0.3%)
gen split merge : 902.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.00 us (0.3%)
LB compute : 340.39 us (94.8%)
LB move op cnt : 0
LB apply : 3.39 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.04 us (64.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: defaulting sort_by_key_pow2_len implementation to impl : {"implementation":"lsd_radix_sort_basic","parameters":{}} [algs][rank=0]
Info: defaulting scan_exclusive_sum_in_place implementation to impl : {"implementation":"decoupled_lookback_512","parameters":{}} [algs][rank=0]
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.4840115296936582 unconverged cnt = 100000
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.6292149886017556 unconverged cnt = 99999
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.6783553284643796 unconverged cnt = 99994
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.7469331342286956 unconverged cnt = 99987
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.8330097352644653 unconverged cnt = 99972
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0822462608556496 unconverged cnt = 99922
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0959018469017643 unconverged cnt = 99660
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0959018469017643 unconverged cnt = 96341
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0959018469017643 unconverged cnt = 75924
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0959018469017643 unconverged cnt = 42350
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0959018469017643 unconverged cnt = 6658
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 1.0959018469017643 unconverged cnt = 94
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.306333150656428e-18,9.870149142443551e-18,0)
sum a = (-6.809016750865325e-05,-0.0002714877139375777,-1.307151676415396e-05)
sum e = 0.061741473158174597
sum de = 1.3067098388153236e-05
Info: cfl dt = 6.195173788224936e-05 cfl multiplier : 0.01 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 2.7516e+04 | 100000 | 1 | 3.634e+00 | 0.0% | 0.5% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 0 (tsim/hr) [sph::Model][rank=0]
On the fly analysis
326 def save_rho_integ(ext, arr_rho, iplot):
327 if shamrock.sys.world_rank() == 0:
328 metadata = {"extent": [-ext, ext, -ext, ext], "time": model.get_time()}
329 np.save(plot_folder + f"rho_integ_{iplot:07}.npy", arr_rho)
330
331 with open(plot_folder + f"rho_integ_{iplot:07}.json", "w") as fp:
332 json.dump(metadata, fp)
333
334
335 def save_analysis_data(filename, key, value, ianalysis):
336 """Helper to save analysis data to a JSON file."""
337 if shamrock.sys.world_rank() == 0:
338 filepath = os.path.join(analysis_folder, filename)
339 try:
340 with open(filepath, "r") as fp:
341 data = json.load(fp)
342 except (FileNotFoundError, json.JSONDecodeError):
343 data = {key: []}
344 data[key] = data[key][:ianalysis]
345 data[key].append({"t": model.get_time(), key: value})
346 with open(filepath, "w") as fp:
347 json.dump(data, fp, indent=4)
348
349
350 from shamrock.utils.analysis import (
351 ColumnDensityPlot,
352 ColumnParticleCount,
353 PerfHistory,
354 SliceDensityPlot,
355 SliceDiffVthetaProfile,
356 SliceDtPart,
357 SliceVzPlot,
358 VerticalShearGradient,
359 )
360
361 perf_analysis = PerfHistory(model, analysis_folder, "perf_history")
362
363 column_density_plot = ColumnDensityPlot(
364 model,
365 ext_r=rout * 1.5,
366 nx=1024,
367 ny=1024,
368 ex=(1, 0, 0),
369 ey=(0, 1, 0),
370 center=(0, 0, 0),
371 analysis_folder=analysis_folder,
372 analysis_prefix="rho_integ_normal",
373 )
374
375 column_density_plot_hollywood = ColumnDensityPlot(
376 model,
377 ext_r=rout * 1.5,
378 nx=1024,
379 ny=1024,
380 ex=(1, 0, 0),
381 ey=(0, 1, 0),
382 center=(0, 0, 0),
383 analysis_folder=analysis_folder,
384 analysis_prefix="rho_integ_hollywood",
385 )
386
387 vertical_density_plot = SliceDensityPlot(
388 model,
389 ext_r=rout * 1.1 / (16.0 / 9.0), # aspect ratio of 16:9
390 nx=1920,
391 ny=1080,
392 ex=(1, 0, 0),
393 ey=(0, 0, 1),
394 center=(0, 0, 0),
395 analysis_folder=analysis_folder,
396 analysis_prefix="rho_slice",
397 )
398
399 v_z_slice_plot = SliceVzPlot(
400 model,
401 ext_r=rout * 1.1 / (16.0 / 9.0), # aspect ratio of 16:9
402 nx=1920,
403 ny=1080,
404 ex=(1, 0, 0),
405 ey=(0, 0, 1),
406 center=(0, 0, 0),
407 analysis_folder=analysis_folder,
408 analysis_prefix="v_z_slice",
409 do_normalization=True,
410 )
411
412 relative_azy_velocity_slice_plot = SliceDiffVthetaProfile(
413 model,
414 ext_r=rout * 0.5 / (16.0 / 9.0), # aspect ratio of 16:9
415 nx=1920,
416 ny=1080,
417 ex=(1, 0, 0),
418 ey=(0, 0, 1),
419 center=((rin + rout) / 2, 0, 0),
420 analysis_folder=analysis_folder,
421 analysis_prefix="relative_azy_velocity_slice",
422 velocity_profile=kep_profile,
423 do_normalization=True,
424 min_normalization=1e-9,
425 )
426
427 vertical_shear_gradient_slice_plot = VerticalShearGradient(
428 model,
429 ext_r=rout * 0.5 / (16.0 / 9.0), # aspect ratio of 16:9
430 nx=1920,
431 ny=1080,
432 ex=(1, 0, 0),
433 ey=(0, 0, 1),
434 center=((rin + rout) / 2, 0, 0),
435 analysis_folder=analysis_folder,
436 analysis_prefix="vertical_shear_gradient_slice",
437 do_normalization=True,
438 min_normalization=1e-9,
439 )
440
441 dt_part_slice_plot = SliceDtPart(
442 model,
443 ext_r=rout * 0.5 / (16.0 / 9.0), # aspect ratio of 16:9
444 nx=1920,
445 ny=1080,
446 ex=(1, 0, 0),
447 ey=(0, 0, 1),
448 center=((rin + rout) / 2, 0, 0),
449 analysis_folder=analysis_folder,
450 analysis_prefix="dt_part_slice",
451 )
452
453 column_particle_count_plot = ColumnParticleCount(
454 model,
455 ext_r=rout * 1.5,
456 nx=1024,
457 ny=1024,
458 ex=(1, 0, 0),
459 ey=(0, 1, 0),
460 center=(0, 0, 0),
461 analysis_folder=analysis_folder,
462 analysis_prefix="particle_count",
463 )
464
465
466 def analysis(ianalysis):
467 column_density_plot.analysis_save(ianalysis)
468 column_density_plot_hollywood.analysis_save(ianalysis)
469 vertical_density_plot.analysis_save(ianalysis)
470 v_z_slice_plot.analysis_save(ianalysis)
471 relative_azy_velocity_slice_plot.analysis_save(ianalysis)
472 vertical_shear_gradient_slice_plot.analysis_save(ianalysis)
473 dt_part_slice_plot.analysis_save(ianalysis)
474 column_particle_count_plot.analysis_save(ianalysis)
475

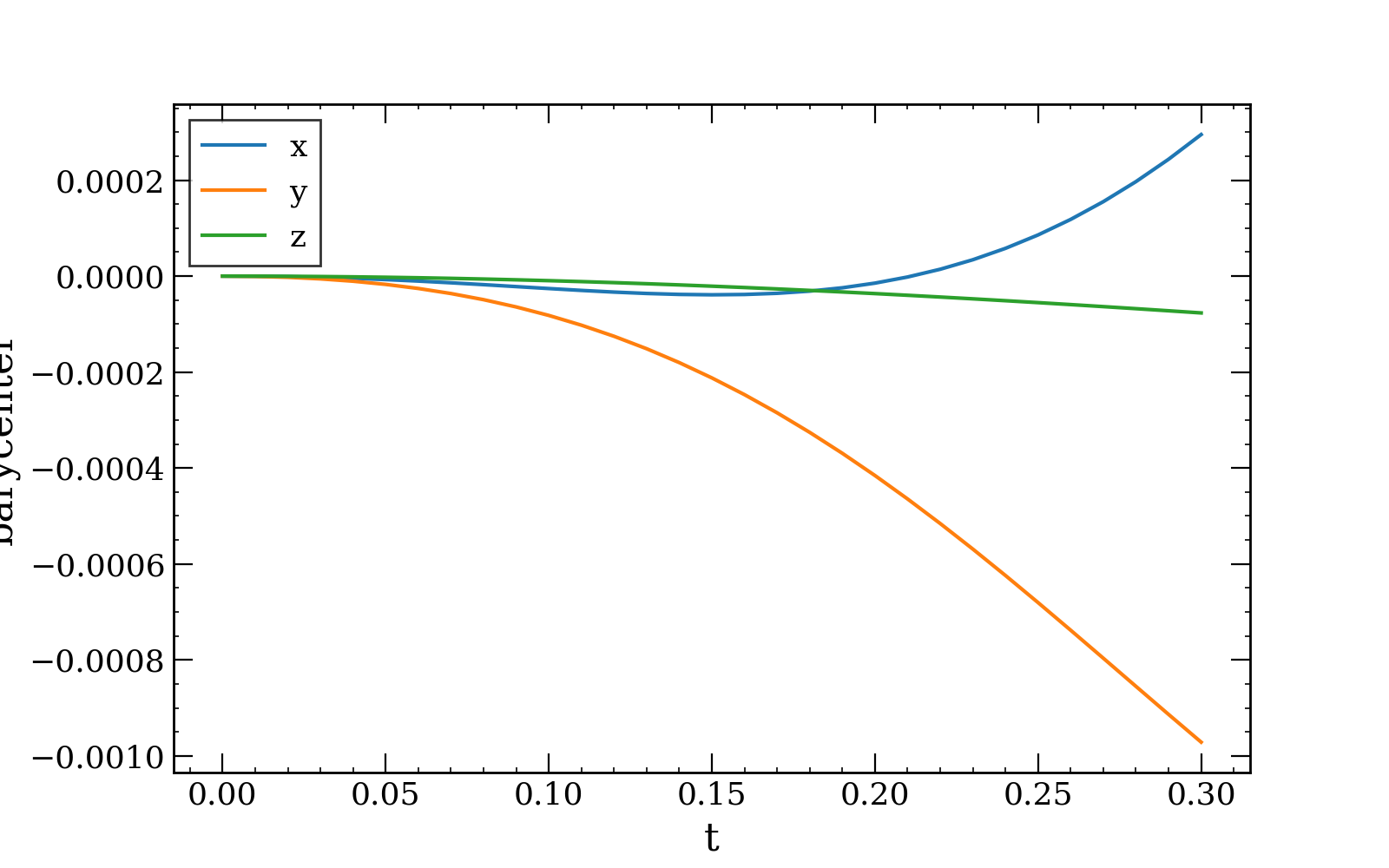

476 barycenter, disc_mass = shamrock.model_sph.analysisBarycenter(model=model).get_barycenter()
477

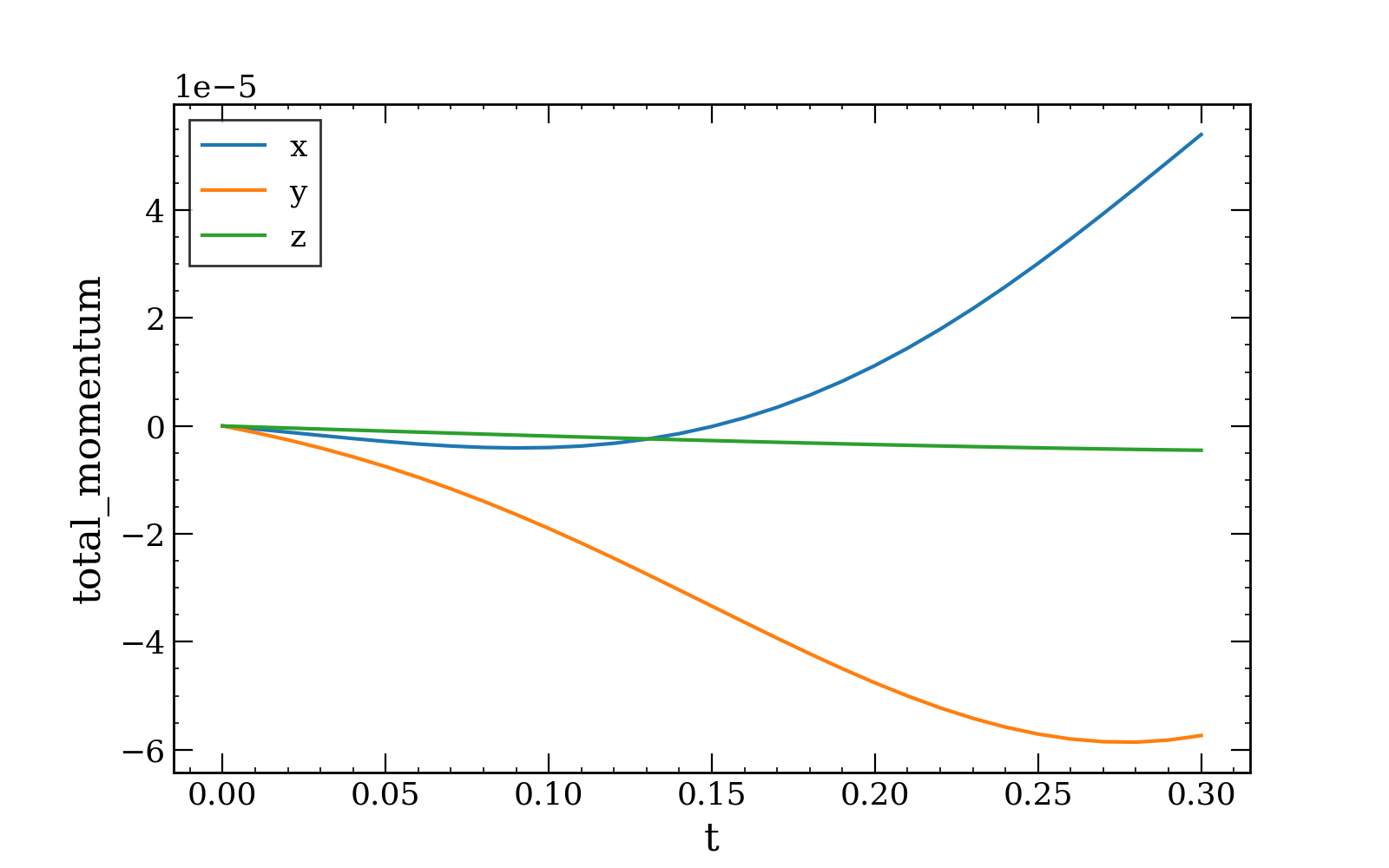

478 total_momentum = shamrock.model_sph.analysisTotalMomentum(model=model).get_total_momentum()
479

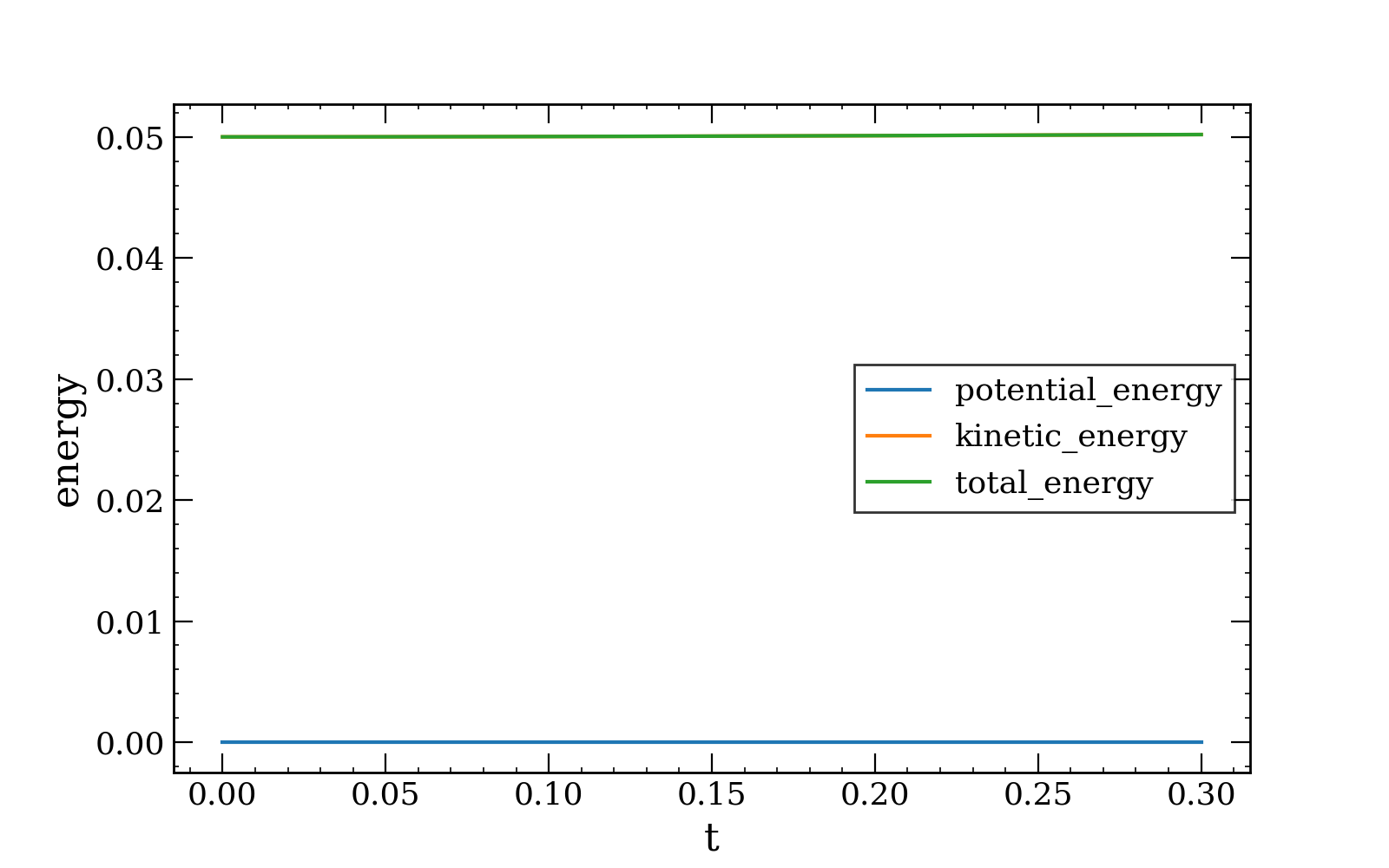

480 potential_energy = shamrock.model_sph.analysisEnergyPotential(
481 model=model
482 ).get_potential_energy()
483
484 kinetic_energy = shamrock.model_sph.analysisEnergyKinetic(model=model).get_kinetic_energy()
485
486 save_analysis_data("barycenter.json", "barycenter", barycenter, ianalysis)

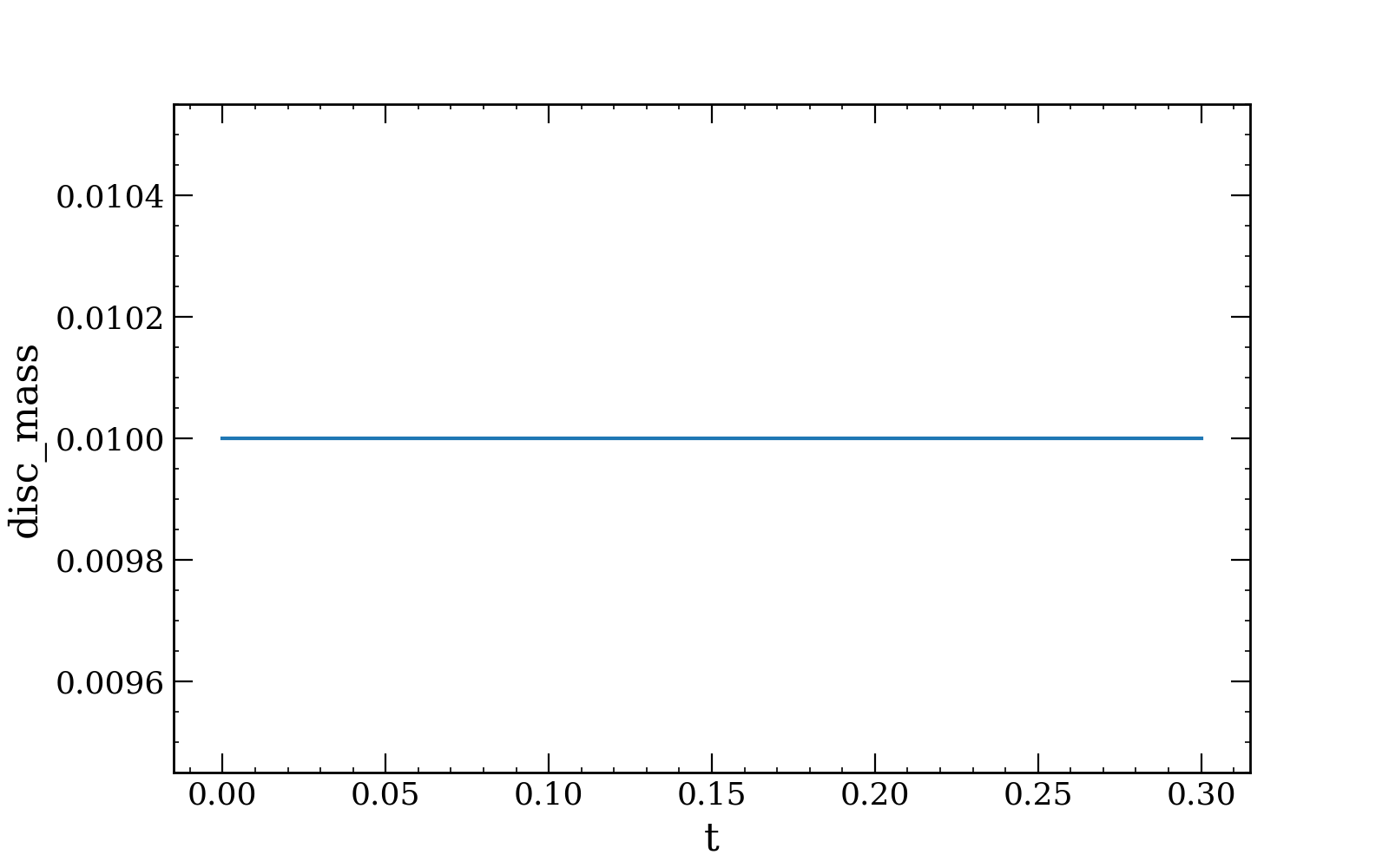

487 save_analysis_data("disc_mass.json", "disc_mass", disc_mass, ianalysis)
488 save_analysis_data("total_momentum.json", "total_momentum", total_momentum, ianalysis)
489 save_analysis_data("potential_energy.json", "potential_energy", potential_energy, ianalysis)
490 save_analysis_data("kinetic_energy.json", "kinetic_energy", kinetic_energy, ianalysis)
491

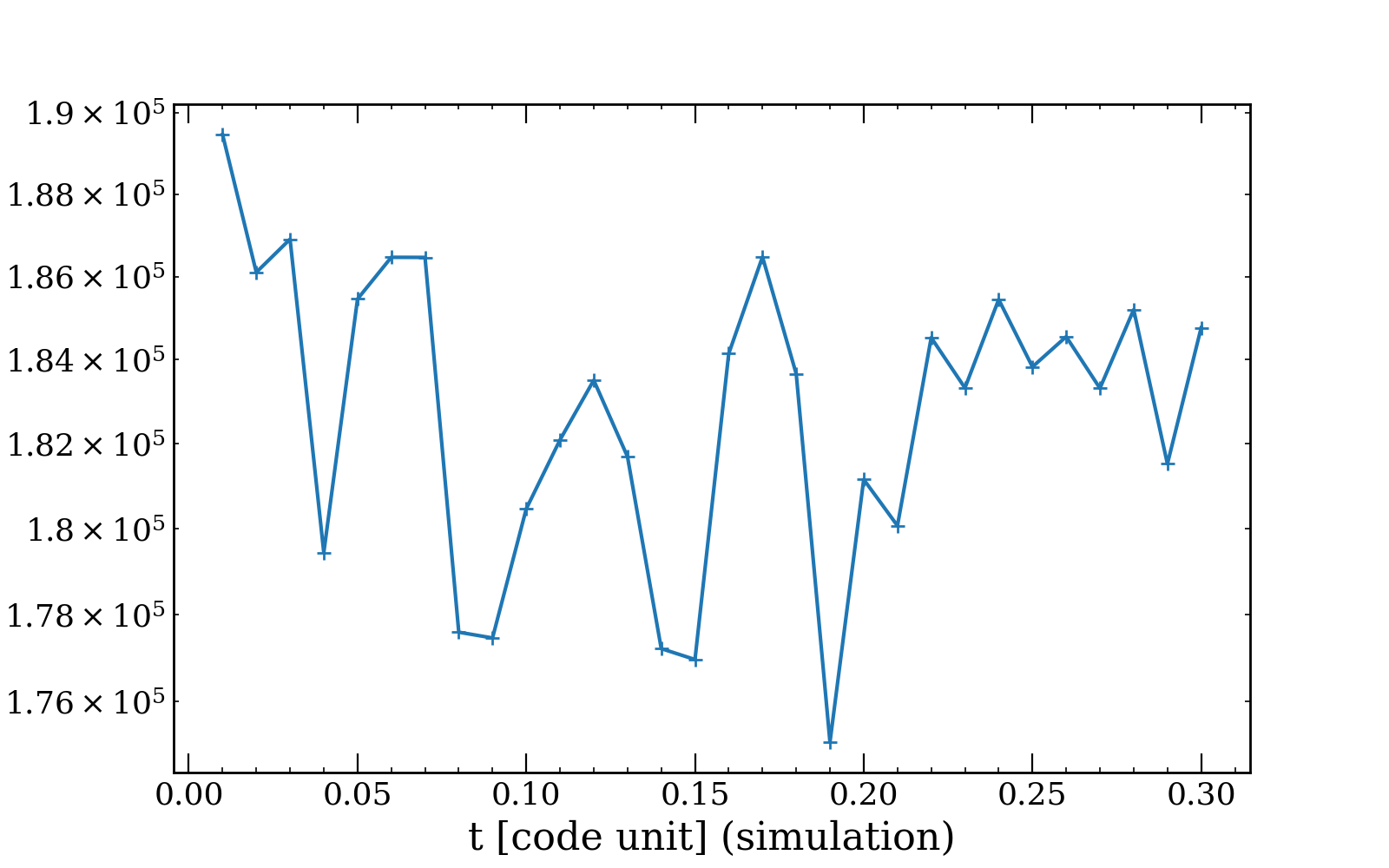

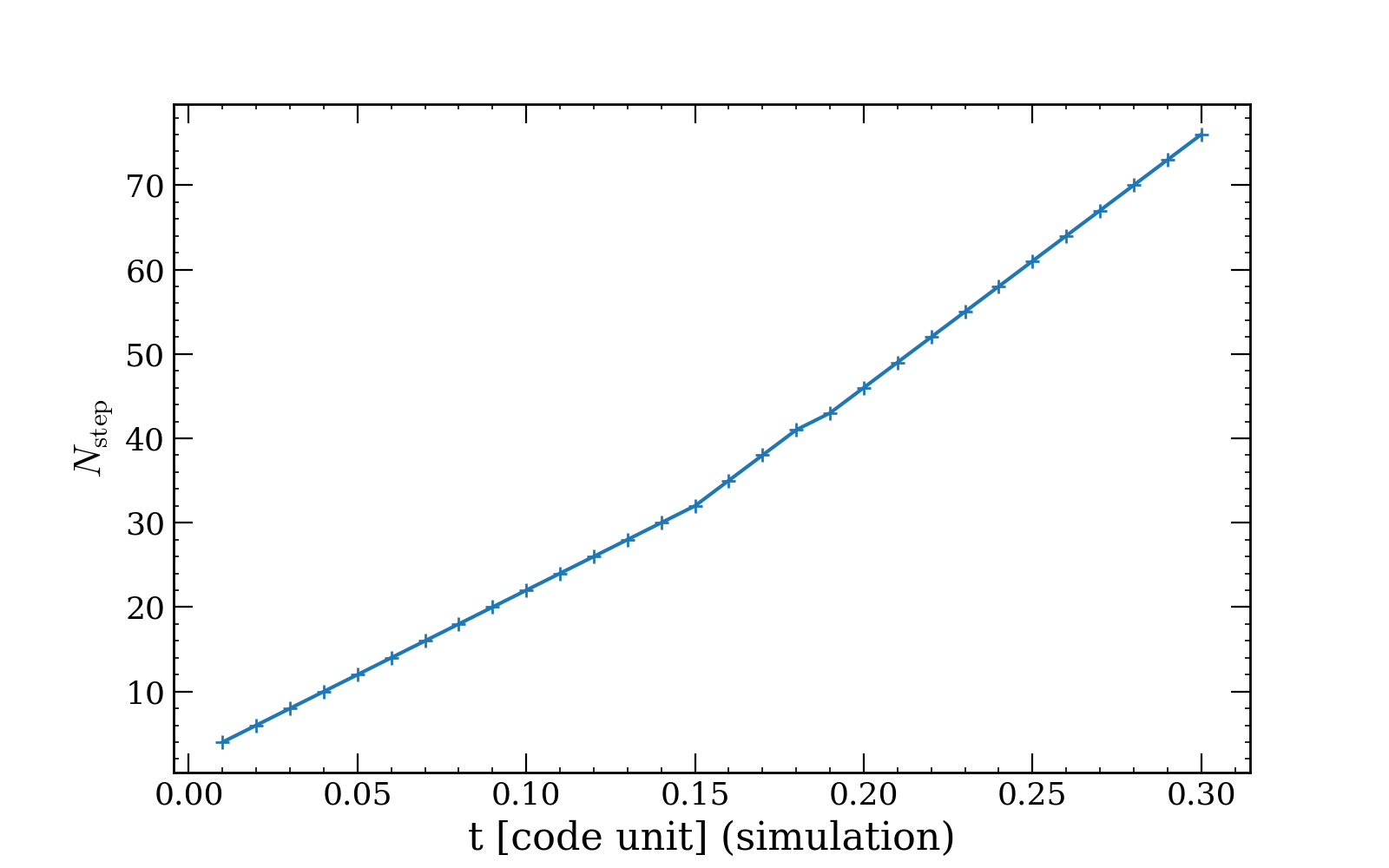

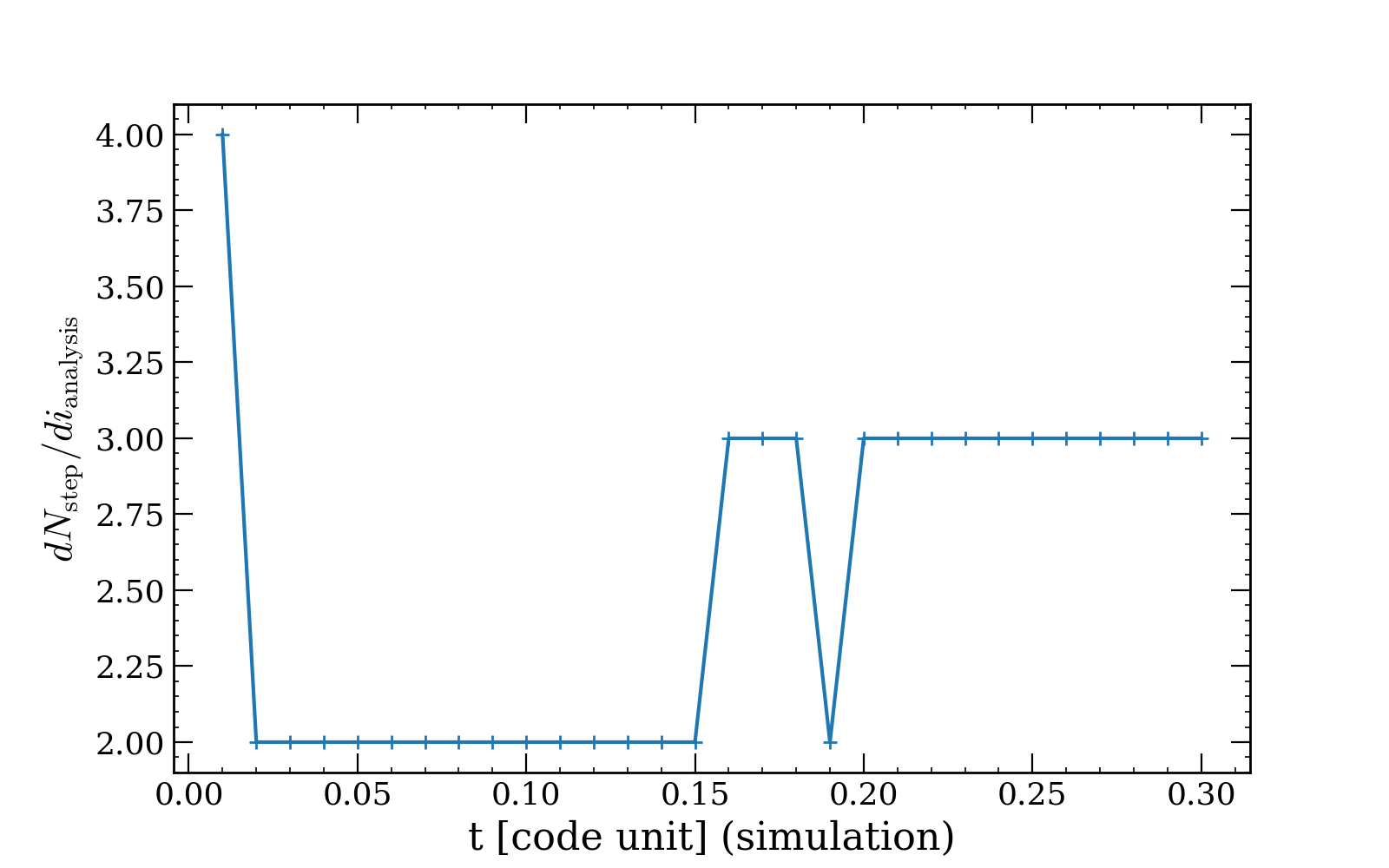

492 perf_analysis.analysis_save(ianalysis)
Evolve the simulation
497 model.solver_logs_reset_cumulated_step_time()
498 model.solver_logs_reset_step_count()
499
500 t_start = model.get_time()
501
502 idump = 0
503 iplot = 0
504 istop = 0
505 for ttarg in t_stop:
506 if ttarg >= t_start:
507 model.evolve_until(ttarg)
508
509 if istop % dump_freq_stop == 0:
510 model.do_vtk_dump(get_vtk_dump_name(idump), True)
511 dump_helper.write_dump(idump, purge_old_dumps=True, keep_first=1, keep_last=3)
512
513 # dump = model.make_phantom_dump()
514 # dump.save_dump(get_ph_dump_name(idump))
515
516 if istop % plot_freq_stop == 0:
517 analysis(iplot)
518
519 if istop % dump_freq_stop == 0:
520 idump += 1
521
522 if istop % plot_freq_stop == 0:
523 iplot += 1
524
525 istop += 1
Info: evolve_until (target_time = 0.00s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
Info: iteration since start : 1 [SPH][rank=0]
Info: time since start : 17.468398613 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000000.vtk [VTK Dump][rank=0]
- took 29.45 ms, bandwidth = 190.15 MB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000000.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.09 us (31.3%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000000.sham [Shamrock Dump][rank=0]
- took 12.66 ms, bandwidth = 1.01 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000000.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.99 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000000.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 525.75 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 617.96 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000000.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 841.69 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 620.88 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000000.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.824278064 s
Info: compute_slice took 1.78 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 955.57 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000000.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.354128549 s
Info: compute_slice took 1.29 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 947.15 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000000.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 947.71 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 945.42 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000000.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000000.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000000.json
Warning: step count is 0, skipping save of perf history
Info: evolve_until (target_time = 0.01s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0, dt = 6.195173788224936e-05 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.62 us (1.5%)
patch tree reduce : 1.57 us (0.4%)
gen split merge : 831.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.11 us (0.3%)
LB compute : 410.76 us (95.3%)
LB move op cnt : 0
LB apply : 3.68 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.37 us (67.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-4.2183042077923006e-09,-1.681913568280464e-08,-8.098031802962966e-10)
sum a = (-6.809236447941799e-05,-0.0002715555283707644,-1.3071524901449231e-05)
sum e = 0.06174147593737463
sum de = 1.3561912793202439e-05
Info: cfl dt = 0.0021065671174041963 cfl multiplier : 0.34 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.7109e+05 | 100000 | 1 | 5.845e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 0.3815824812189808 (tsim/hr) [sph::Model][rank=0]
---------------- t = 6.195173788224936e-05, dt = 0.0021065671174041963 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.69 us (1.5%)
patch tree reduce : 1.25 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 971.00 ns (0.3%)
LB compute : 353.41 us (95.0%)
LB move op cnt : 0
LB apply : 3.62 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.10 us (65.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.476595082141067e-07,-5.888711829108956e-07,-2.8345847964079112e-08)
sum a = (-6.81288903506882e-05,-0.000273914486451397,-1.3071695845458696e-05)
sum e = 0.06174377992723542
sum de = 3.0307352828807647e-05
Info: cfl dt = 0.0034806281785345027 cfl multiplier : 0.56 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6507e+05 | 100000 | 1 | 6.058e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 12.518401855894401 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.0021685188552864458, dt = 0.0034806281785345027 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.25 us (1.9%)
patch tree reduce : 1.16 us (0.4%)
gen split merge : 841.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 307.34 us (94.0%)
LB move op cnt : 0
LB apply : 3.83 us (1.2%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.83 us (59.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.8482931583894525e-07,-1.5447503147200364e-06,-7.384374091752998e-08)
sum a = (-6.80197553770344e-05,-0.0002780338726991912,-1.3071519875696673e-05)
sum e = 0.06174784163088342
sum de = 5.77713976898702e-05
Info: cfl dt = 0.004414638015654897 cfl multiplier : 0.7066666666666667 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6885e+05 | 100000 | 1 | 5.922e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 21.157890131540853 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.005649147033820948, dt = 0.004350852966179052 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.83 us (1.7%)
patch tree reduce : 1.16 us (0.3%)
gen split merge : 852.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.20 us (0.4%)
LB compute : 314.40 us (94.3%)
LB move op cnt : 0
LB apply : 3.36 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.01 us (61.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-6.805833411512921e-07,-2.7616038403906507e-06,-1.3071569569851707e-07)
sum a = (-6.756464990955729e-05,-0.00028355827815897437,-1.3070470668183253e-05)
sum e = 0.0617516354072434
sum de = 9.199199760629586e-05
Info: cfl dt = 0.004807351071356165 cfl multiplier : 0.8044444444444444 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5464e+05 | 100000 | 1 | 6.467e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.22111097472032 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 5 [SPH][rank=0]
Info: time since start : 35.903371655 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.98 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000001.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000001.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 528.06 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 519.03 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000001.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 643.49 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 523.38 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000001.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.7151869120000001 s
Info: compute_slice took 1.61 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 901.17 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000001.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.350034891 s
Info: compute_slice took 1.26 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 935.70 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000001.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 896.77 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 897.79 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000001.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000001.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000001.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.02s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.01, dt = 0.004807351071356165 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.02 us (1.5%)
patch tree reduce : 1.29 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 384.53 us (95.1%)
LB move op cnt : 0
LB apply : 4.22 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.17 us (62.5%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.0044002847989582e-06,-4.1367859706143255e-06,-1.9354775439452586e-07)
sum a = (-6.661504461822837e-05,-0.0002901231598516963,-1.3068188808270313e-05)
sum e = 0.06175429451410408
sum de = 0.00012983894711168702
Info: cfl dt = 0.00501149309069954 cfl multiplier : 0.8696296296296296 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6330e+05 | 100000 | 1 | 6.124e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 28.261977473818963 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.014807351071356166, dt = 0.00501149309069954 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.43 us (1.3%)
patch tree reduce : 1.15 us (0.3%)
gen split merge : 811.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.03 us (0.2%)
LB compute : 399.17 us (95.6%)
LB move op cnt : 0
LB apply : 3.44 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.13 us (61.4%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.3359585776251137e-06,-5.606516027208893e-06,-2.590334074642808e-07)
sum a = (-6.508331364904201e-05,-0.00029744949227900226,-1.3064484833254235e-05)
sum e = 0.0617560621749239
sum de = 0.00016938513465277106
Info: cfl dt = 0.005095102536178649 cfl multiplier : 0.9130864197530864 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6232e+05 | 100000 | 1 | 6.161e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 29.284567499124197 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.019818844162055704, dt = 0.0001811558379442961 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.41 us (1.4%)
patch tree reduce : 1.13 us (0.3%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 881.00 ns (0.2%)
LB compute : 373.51 us (95.3%)
LB move op cnt : 0
LB apply : 3.58 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.30 us (64.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.3439106702606843e-06,-5.678758671371609e-06,-2.613908339389598e-07)
sum a = (-6.501716389752216e-05,-0.0002977231505433015,-1.3064324048052876e-05)
sum e = 0.06174333523419032
sum de = 0.00017161977335172532
Info: cfl dt = 0.005265548795415063 cfl multiplier : 0.9420576131687243 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6514e+05 | 100000 | 1 | 6.055e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 1.0770095837741736 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 8 [SPH][rank=0]
Info: time since start : 52.830056862000006 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000001.vtk [VTK Dump][rank=0]
- took 5.54 ms, bandwidth = 1.01 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000001.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.48 us (56.2%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000001.sham [Shamrock Dump][rank=0]
- took 4.65 ms, bandwidth = 2.76 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000002.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000002.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 505.35 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 507.37 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000002.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 656.14 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 515.43 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000002.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.49378813200000005 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 885.57 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000002.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.35122325400000004 s
Info: compute_slice took 1.22 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 870.93 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000002.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 863.08 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 875.29 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000002.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000002.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000002.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.03s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.02, dt = 0.005265548795415063 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.84 us (1.7%)
patch tree reduce : 1.43 us (0.4%)
gen split merge : 1.09 us (0.3%)
split / merge op : 0/0
apply split merge : 1.16 us (0.3%)
LB compute : 380.69 us (95.0%)
LB move op cnt : 0
LB apply : 3.41 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.96 us (64.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.6862557276001267e-06,-7.246459235494346e-06,-3.301816551295061e-07)
sum a = (-6.274046145478042e-05,-0.0003059269408757451,-1.3058834589793562e-05)
sum e = 0.06175843072811417
sum de = 0.0002123456564419389
Info: cfl dt = 0.005150896055451048 cfl multiplier : 0.9613717421124829 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6689e+05 | 100000 | 1 | 5.992e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 31.635945831003873 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.025265548795415062, dt = 0.004734451204584936 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.94 us (1.5%)
patch tree reduce : 1.21 us (0.3%)
gen split merge : 831.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 369.44 us (95.0%)
LB move op cnt : 0
LB apply : 3.78 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.01 us (65.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.97730333701194e-06,-8.716454138395088e-06,-3.919936177784686e-07)
sum a = (-6.00903142310119e-05,-0.0003136922162491219,-1.305246698973536e-05)
sum e = 0.06175682184263723
sum de = 0.0002501909763087041
Info: cfl dt = 0.005499949170737932 cfl multiplier : 0.9742478280749886 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6189e+05 | 100000 | 1 | 6.177e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 27.59261503541847 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 10 [SPH][rank=0]
Info: time since start : 68.71399621 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000003.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000003.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 496.77 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 497.41 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000003.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 625.08 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 495.66 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000003.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.494672995 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 909.04 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000003.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.36297049800000003 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 907.09 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000003.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 901.94 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 901.42 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000003.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.25 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000003.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000003.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.04s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.03, dt = 0.005499949170737932 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 7.01 us (1.6%)
patch tree reduce : 1.89 us (0.4%)
gen split merge : 742.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.29 us (0.3%)
LB compute : 430.69 us (95.4%)
LB move op cnt : 0
LB apply : 3.46 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.94 us (62.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.301523514571543e-06,-1.0460127541686401e-05,-4.637664492288631e-07)
sum a = (-5.624715103122429e-05,-0.00032312379748740194,-1.3043288365087434e-05)
sum e = 0.06176229897235949
sum de = 0.00029327474486710696
Info: cfl dt = 0.00565548921334089 cfl multiplier : 0.9828318853833258 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6442e+05 | 100000 | 1 | 6.082e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 32.55514802142402 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.035499949170737934, dt = 0.004500050829262067 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.88 us (1.6%)
patch tree reduce : 1.27 us (0.4%)
gen split merge : 841.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.18 us (0.3%)
LB compute : 341.27 us (94.7%)
LB move op cnt : 0
LB apply : 3.67 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.93 us (63.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.5440699520883605e-06,-1.1940137663228614e-05,-5.224366688679705e-07)
sum a = (-5.2461497019067366e-05,-0.00033112966401114267,-1.3034278436065107e-05)
sum e = 0.06175861795048506
sum de = 0.00032959374898518175
Info: cfl dt = 0.005769908628077245 cfl multiplier : 0.9885545902555505 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6141e+05 | 100000 | 1 | 6.195e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 26.149135703418768 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 12 [SPH][rank=0]
Info: time since start : 84.950575711 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000002.vtk [VTK Dump][rank=0]
- took 5.84 ms, bandwidth = 959.29 MB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000002.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.52 us (55.6%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000002.sham [Shamrock Dump][rank=0]
- took 4.68 ms, bandwidth = 2.74 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000004.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000004.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 524.40 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 514.92 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000004.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 636.19 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 500.53 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000004.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.49333797900000004 s
Info: compute_slice took 1.35 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 916.01 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000004.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.351075299 s
Info: compute_slice took 1.20 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 868.41 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000004.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 874.43 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 872.17 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000004.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000004.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000004.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.05s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.04, dt = 0.005769908628077245 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.53 us (1.9%)
patch tree reduce : 1.39 us (0.4%)
gen split merge : 711.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.12 us (0.3%)
LB compute : 333.30 us (94.4%)
LB move op cnt : 0
LB apply : 3.61 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.13 us (65.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.838250178642471e-06,-1.3868738971745358e-05,-5.976229919076978e-07)
sum a = (-4.6717600108005084e-05,-0.000341712578936836,-1.3020686683991786e-05)
sum e = 0.06176727792698407
sum de = 0.00037441410903025384
Info: cfl dt = 0.005575322484285537 cfl multiplier : 0.9923697268370336 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5220e+05 | 100000 | 1 | 6.570e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 31.614817647766383 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.04576990862807725, dt = 0.004230091371922755 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.70 us (1.7%)
patch tree reduce : 1.52 us (0.4%)
gen split merge : 902.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 962.00 ns (0.3%)
LB compute : 321.54 us (94.4%)
LB move op cnt : 0
LB apply : 3.39 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.34 us (64.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.019299015602924e-06,-1.5344745629661408e-05,-6.526624747223828e-07)
sum a = (-4.1849422450255494e-05,-0.000349658721104124,-1.3009207018346578e-05)
sum e = 0.06176111287103763
sum de = 0.00040894314502974986
Info: cfl dt = 0.005472093804591638 cfl multiplier : 0.9949131512246892 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6693e+05 | 100000 | 1 | 5.990e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.42136337439547 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 14 [SPH][rank=0]
Info: time since start : 100.838285881 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000005.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000005.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 500.73 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 500.18 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000005.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 632.91 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 496.53 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000005.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.494165102 s
Info: compute_slice took 1.34 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 868.44 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000005.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.506640894 s
Info: compute_slice took 1.38 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 859.07 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000005.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 862.76 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 863.28 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000005.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000005.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000005.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.06s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.05, dt = 0.005472093804591638 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.89 us (1.7%)
patch tree reduce : 1.22 us (0.3%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.06 us (0.3%)
LB compute : 375.28 us (95.0%)
LB move op cnt : 0
LB apply : 3.70 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.31 us (64.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.238006562765054e-06,-1.727491740485707e-05,-7.23825795832827e-07)
sum a = (-3.46925680025485e-05,-0.0003601128196345599,-1.2992429713933262e-05)
sum e = 0.061769592287493416
sum de = 0.0004514981205862374
Info: cfl dt = 0.005307355424183303 cfl multiplier : 0.9966087674831261 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6602e+05 | 100000 | 1 | 6.024e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 32.704250969296886 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.05547209380459164, dt = 0.004527906195408354 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.81 us (1.5%)
patch tree reduce : 1.13 us (0.3%)
gen split merge : 812.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 367.56 us (95.1%)
LB move op cnt : 0
LB apply : 3.57 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.02 us (65.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.3755097669161968e-06,-1.8934077375821616e-05,-7.826083953361858e-07)
sum a = (-2.801924675470452e-05,-0.0003688670364675175,-1.2976875340721769e-05)
sum e = 0.06176692636087201
sum de = 0.00048797345976757476
Info: cfl dt = 0.00514881764349943 cfl multiplier : 0.997739178322084 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6019e+05 | 100000 | 1 | 6.243e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 26.112033725484117 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 16 [SPH][rank=0]
Info: time since start : 116.739171412 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000003.vtk [VTK Dump][rank=0]
- took 5.44 ms, bandwidth = 1.03 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000003.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.72 us (56.7%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000003.sham [Shamrock Dump][rank=0]
- took 4.50 ms, bandwidth = 2.84 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000006.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000006.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 498.61 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 513.13 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000006.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 623.98 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 518.45 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000006.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.489220823 s
Info: compute_slice took 1.34 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 863.82 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000006.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.349296798 s
Info: compute_slice took 1.25 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 870.91 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000006.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 868.62 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 873.17 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000006.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000006.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000006.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.07s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.06, dt = 0.00514881764349943 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.81 us (1.8%)
patch tree reduce : 1.65 us (0.4%)
gen split merge : 1.16 us (0.3%)
split / merge op : 0/0
apply split merge : 1.16 us (0.3%)
LB compute : 363.76 us (94.7%)
LB move op cnt : 0
LB apply : 3.63 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.96 us (64.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.504667672654479e-06,-2.0853125617614325e-05,-8.493887456765749e-07)
sum a = (-1.958017079196733e-05,-0.00037887774002621436,-1.295734912284462e-05)
sum e = 0.06177260023256758
sum de = 0.0005282651886229812
Info: cfl dt = 0.004984406493176376 cfl multiplier : 0.998492785548056 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.4927e+05 | 100000 | 1 | 6.699e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 27.66914029247747 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.06514881764349943, dt = 0.004851182356500575 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.20 us (1.5%)
patch tree reduce : 1.13 us (0.3%)
gen split merge : 842.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.06 us (0.3%)
LB compute : 333.14 us (94.9%)
LB move op cnt : 0
LB apply : 3.25 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.76 us (63.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.5779290201283644e-06,-2.27169022688617e-05,-9.12196940660775e-07)
sum a = (-1.0784702161750639e-05,-0.000388310551702334,-1.2937166626963702e-05)
sum e = 0.06177375034482751
sum de = 0.0005667290963773824
Info: cfl dt = 0.0048486354654509135 cfl multiplier : 0.9989951903653708 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6639e+05 | 100000 | 1 | 6.010e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 29.05893225214118 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 18 [SPH][rank=0]
Info: time since start : 132.600832738 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000007.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000007.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 502.89 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 494.88 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000007.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 621.04 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 496.26 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000007.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.503141568 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 877.61 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000007.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.35113496800000005 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 1.28 s [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000007.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 866.90 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 886.38 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000007.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000007.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000007.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.08s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.07, dt = 0.0048486354654509135 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.64 us (1.7%)
patch tree reduce : 1.56 us (0.4%)
gen split merge : 861.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.00 us (0.2%)
LB compute : 382.32 us (95.0%)
LB move op cnt : 0
LB apply : 3.71 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.15 us (63.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.6088858984067166e-06,-2.46225587262475e-05,-9.748755911067552e-07)
sum a = (-1.1610229255460091e-06,-0.0003976834407616946,-1.291528132492063e-05)
sum e = 0.06177658527285126
sum de = 0.000604902136039403
Info: cfl dt = 0.005088448273957932 cfl multiplier : 0.9993301269102473 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5044e+05 | 100000 | 1 | 6.647e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 26.258707689921312 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.07484863546545092, dt = 0.005088448273957932 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.73 us (1.5%)
patch tree reduce : 1.15 us (0.3%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 366.10 us (95.0%)
LB move op cnt : 0
LB apply : 3.79 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.11 us (64.9%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.5914628472696375e-06,-2.666887320512082e-05,-1.0405412751464022e-06)
sum a = (9.845880839872495e-06,-0.00040739979300817813,-1.2890492907142296e-05)
sum e = 0.061780984563989456
sum de = 0.0006446160637024922
Info: cfl dt = 0.005002774825837423 cfl multiplier : 0.9995534179401648 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6207e+05 | 100000 | 1 | 6.170e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 29.688483911733556 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.07993708373940886, dt = 6.291626059114208e-05 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.60 us (1.5%)
patch tree reduce : 1.15 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.05 us (0.3%)
LB compute : 365.97 us (95.3%)
LB move op cnt : 0
LB apply : 3.55 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.52 us (64.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.5628393510323767e-06,-2.6719225854555e-05,-1.041289229466466e-06)
sum a = (9.98778525754619e-06,-0.0004075189344885959,-1.2890174772948908e-05)
sum e = 0.061767864273575064
sum de = 0.0006464758155384061
Info: cfl dt = 0.005010763066361026 cfl multiplier : 0.9997022786267765 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6733e+05 | 100000 | 1 | 5.976e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 0.3790078066927356 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 21 [SPH][rank=0]
Info: time since start : 149.47578815600002 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000004.vtk [VTK Dump][rank=0]
- took 5.45 ms, bandwidth = 1.03 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000004.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.84 us (57.8%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000004.sham [Shamrock Dump][rank=0]
- took 4.53 ms, bandwidth = 2.83 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000008.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000008.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 502.11 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 503.70 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000008.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 628.12 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 499.79 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000008.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.487419767 s
Info: compute_slice took 1.36 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 862.19 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000008.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.349622351 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 903.98 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000008.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 899.44 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 905.02 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000008.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000008.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000008.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.09s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.08, dt = 0.005010763066361026 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.62 us (1.7%)
patch tree reduce : 1.28 us (0.3%)
gen split merge : 852.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.27 us (0.3%)
LB compute : 376.76 us (94.9%)
LB move op cnt : 0
LB apply : 3.57 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.28 us (64.4%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.512788461495024e-06,-2.876121042830884e-05,-1.1058788311297814e-06)
sum a = (2.175374224502046e-05,-0.00041690183196352917,-1.2863939269558912e-05)
sum e = 0.06178396793567815
sum de = 0.0006842939401890489
Info: cfl dt = 0.004927093357365062 cfl multiplier : 0.9998015190845176 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.3553e+05 | 100000 | 1 | 7.379e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.44733905475275 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.08501076306636103, dt = 0.004927093357365062 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.79 us (1.6%)
patch tree reduce : 3.70 us (1.0%)
gen split merge : 1.69 us (0.5%)
split / merge op : 0/0
apply split merge : 2.73 us (0.7%)
LB compute : 344.14 us (93.2%)
LB move op cnt : 0
LB apply : 3.62 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.04 us (65.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.37612753123189e-06,-3.0838832413313936e-05,-1.1691949309086713e-06)
sum a = (3.4213573346292825e-05,-0.00042588893337988193,-1.2836412753299628e-05)
sum e = 0.061787021844844005
sum de = 0.0007226696055632032
Info: cfl dt = 0.0048594996352018405 cfl multiplier : 0.9998676793896785 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6405e+05 | 100000 | 1 | 6.096e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 29.097963389520118 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.08993785642372609, dt = 6.214357627390421e-05 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.28 us (1.8%)
patch tree reduce : 1.14 us (0.3%)
gen split merge : 862.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.18 us (0.3%)
LB compute : 324.48 us (94.3%)
LB move op cnt : 0
LB apply : 3.63 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.25 us (61.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.343306001902261e-06,-3.08874388185731e-05,-1.1699248186459834e-06)
sum a = (3.437633134098272e-05,-0.00042600054516406987,-1.2836054613766199e-05)
sum e = 0.061774716146762255
sum de = 0.0007245066737439632
Info: cfl dt = 0.004865251554774995 cfl multiplier : 0.9999117862597856 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6655e+05 | 100000 | 1 | 6.004e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 0.37259148344339443 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 24 [SPH][rank=0]
Info: time since start : 166.14070014700002 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000009.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000009.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 534.71 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 523.93 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000009.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 618.21 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 522.97 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000009.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.488591631 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 892.99 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000009.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.34725306100000003 s
Info: compute_slice took 1.23 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 896.33 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000009.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 887.25 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 910.00 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000009.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000009.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000009.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.10s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.09, dt = 0.004865251554774995 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.64 us (1.7%)
patch tree reduce : 1.24 us (0.3%)
gen split merge : 982.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.15 us (0.3%)
LB compute : 367.02 us (94.8%)
LB move op cnt : 0
LB apply : 3.53 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.01 us (62.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.17605144521139e-06,-3.296004210124082e-05,-1.2323754421847532e-06)
sum a = (4.7557751351316774e-05,-0.0004345780229564413,-1.2807177778607558e-05)
sum e = 0.061790380408916594
sum de = 0.0007608534520928514
Info: cfl dt = 0.0050068375859501635 cfl multiplier : 0.9999411908398571 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5837e+05 | 100000 | 1 | 6.314e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 27.738004294407798 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.09486525155477499, dt = 0.0050068375859501635 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.27 us (1.4%)
patch tree reduce : 1.24 us (0.3%)
gen split merge : 772.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.01 us (0.3%)
LB compute : 360.27 us (95.1%)
LB move op cnt : 0
LB apply : 3.79 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.04 us (64.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.9058720461509472e-06,-3.515676947418671e-05,-1.2964286547230487e-06)
sum a = (6.201943691963127e-05,-0.00044303743694266946,-1.2775725379116357e-05)
sum e = 0.06179501068098963
sum de = 0.0007992136280585777
Info: cfl dt = 0.005000600588379318 cfl multiplier : 0.999960793893238 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5356e+05 | 100000 | 1 | 6.512e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 27.67942725440511 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.09987208914072515, dt = 0.00012791085927485457 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.87 us (1.4%)
patch tree reduce : 1.28 us (0.3%)
gen split merge : 752.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.07 us (0.3%)
LB compute : 388.02 us (95.3%)
LB move op cnt : 0
LB apply : 4.09 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.08 us (63.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.8617354312523425e-06,-3.5234616229373866e-05,-1.2979840702061898e-06)
sum a = (6.240067449673219e-05,-0.00044324818939423563,-1.2774898611157998e-05)
sum e = 0.06178235064498111
sum de = 0.0008017092183143337
Info: cfl dt = 0.004996900772017338 cfl multiplier : 0.999973862595492 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.7023e+05 | 100000 | 1 | 5.874e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 0.7838621313398627 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 27 [SPH][rank=0]
Info: time since start : 182.784832082 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000005.vtk [VTK Dump][rank=0]
- took 5.69 ms, bandwidth = 984.92 MB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000005.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.94 us (58.0%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000005.sham [Shamrock Dump][rank=0]
- took 4.80 ms, bandwidth = 2.67 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000010.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000010.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 514.12 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 495.10 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000010.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 629.35 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 497.45 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000010.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.6924898100000001 s
Info: compute_slice took 1.56 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 869.68 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000010.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.34701213000000003 s
Info: compute_slice took 1.21 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 882.61 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000010.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 885.53 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 882.78 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000010.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000010.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000010.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.11s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.1, dt = 0.004996900772017338 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 25.25 us (6.0%)
patch tree reduce : 1.58 us (0.4%)
gen split merge : 732.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 991.00 ns (0.2%)
LB compute : 380.81 us (90.7%)
LB move op cnt : 0
LB apply : 3.53 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.03 us (63.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.549901070472198e-06,-3.744949692793701e-05,-1.3618189180624232e-06)
sum a = (7.775629503410741e-05,-0.0004512427770914916,-1.2741700334483638e-05)
sum e = 0.06179917080458308
sum de = 0.0008383040600367335
Info: cfl dt = 0.004836187868880768 cfl multiplier : 0.9999825750636614 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5842e+05 | 100000 | 1 | 6.312e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 28.498585424351678 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.10499690077201734, dt = 0.004836187868880768 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.59 us (1.5%)
patch tree reduce : 1.30 us (0.3%)
gen split merge : 811.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 972.00 ns (0.3%)
LB compute : 360.12 us (95.1%)
LB move op cnt : 0
LB apply : 3.38 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.12 us (60.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.1354917636366338e-06,-3.965176585315195e-05,-1.4233572304017927e-06)
sum a = (9.346333081295774e-05,-0.0004585026740224153,-1.2707876227413198e-05)
sum e = 0.06180252252406344
sum de = 0.000875005832427979
Info: cfl dt = 0.004691819334118728 cfl multiplier : 0.9999883833757742 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5955e+05 | 100000 | 1 | 6.268e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 27.7783952343758 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.10983308864089811, dt = 0.0001669113591018928 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.78 us (1.4%)
patch tree reduce : 1.21 us (0.3%)
gen split merge : 812.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.00 us (0.2%)
LB compute : 387.51 us (95.4%)
LB move op cnt : 0
LB apply : 3.50 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.18 us (74.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-2.0819105841307914e-06,-3.974585027036215e-05,-1.4253965294260662e-06)
sum a = (9.402002823248907e-05,-0.0004587442351966886,-1.27066786015683e-05)
sum e = 0.06179075060118651
sum de = 0.0008777541243667383
Info: cfl dt = 0.00468802991278257 cfl multiplier : 0.9999922555838495 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.7034e+05 | 100000 | 1 | 5.871e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 1.0235307052577427 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 30 [SPH][rank=0]
Info: time since start : 199.42945727900002 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000011.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.23 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000011.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 510.86 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 496.37 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000011.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 620.21 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 502.11 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000011.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.49268066400000005 s
Info: compute_slice took 1.39 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 888.08 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000011.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.348890676 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 872.71 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000011.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 860.11 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 862.82 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000011.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000011.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000011.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.12s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.11, dt = 0.00468802991278257 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.74 us (2.0%)
patch tree reduce : 1.66 us (0.5%)
gen split merge : 841.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.42 us (0.4%)
LB compute : 311.42 us (93.7%)
LB move op cnt : 0
LB apply : 3.66 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.07 us (64.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.6410954197975584e-06,-4.189647712692137e-05,-1.4849657188536567e-06)
sum a = (0.00011005386090532667,-0.0004652581894157898,-1.2672218843703108e-05)
sum e = 0.06180615341536653
sum de = 0.0009115357081553232
Info: cfl dt = 0.004556881470236079 cfl multiplier : 0.9999948370558996 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5400e+05 | 100000 | 1 | 6.494e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.99041091351971 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.11468802991278257, dt = 0.004556881470236079 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.66 us (1.7%)
patch tree reduce : 1.25 us (0.4%)
gen split merge : 852.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.27 us (0.4%)
LB compute : 311.23 us (94.3%)
LB move op cnt : 0
LB apply : 3.83 us (1.2%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.08 us (64.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-1.1020094767285314e-06,-4.4031872355246856e-05,-1.5426307439014754e-06)
sum a = (0.00012636057842261395,-0.00047106021727869783,-1.2637168197521711e-05)
sum e = 0.06180977877371342
sum de = 0.0009454537150060222
Info: cfl dt = 0.004438809315670396 cfl multiplier : 0.9999965580372665 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6507e+05 | 100000 | 1 | 6.058e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 27.07917231728307 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.11924491138301865, dt = 0.000755088616981342 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.70 us (1.8%)
patch tree reduce : 1.21 us (0.4%)
gen split merge : 761.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 299.89 us (94.1%)
LB move op cnt : 0
LB apply : 3.81 us (1.2%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.85 us (62.9%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-9.694421528716943e-07,-4.4400784139866817e-05,-1.5520930649382467e-06)
sum a = (0.0001291298414189488,-0.0004719682054164691,-1.2631208524279824e-05)
sum e = 0.06180017617243018
sum de = 0.0009524396880304456
Info: cfl dt = 0.004420939528369898 cfl multiplier : 0.9999977053581777 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6328e+05 | 100000 | 1 | 6.124e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 4.438499880309815 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 33 [SPH][rank=0]
Info: time since start : 216.20546321900002 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000006.vtk [VTK Dump][rank=0]
- took 5.42 ms, bandwidth = 1.03 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000006.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.84 us (59.8%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000006.sham [Shamrock Dump][rank=0]
- took 5.89 ms, bandwidth = 2.18 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000012.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000012.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 507.94 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 508.07 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000012.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 623.98 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 504.05 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000012.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.495566806 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 890.00 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000012.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.348927321 s
Info: compute_slice took 1.22 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 911.71 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000012.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 896.29 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 901.52 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000012.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000012.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000012.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.13s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.12, dt = 0.004420939528369898 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.69 us (2.0%)
patch tree reduce : 1.22 us (0.4%)
gen split merge : 822.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.07 us (0.3%)
LB compute : 316.21 us (94.1%)
LB move op cnt : 0
LB apply : 3.56 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.83 us (59.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (-3.9752141317419356e-07,-4.648766984107298e-05,-1.6079326239536062e-06)
sum a = (0.00014572329129716212,-0.00047695486970334756,-1.2595447647077596e-05)
sum e = 0.061814162514239615
sum de = 0.0009835924126301073
Info: cfl dt = 0.004375236350605482 cfl multiplier : 0.9999984702387851 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5187e+05 | 100000 | 1 | 6.584e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.17125992921578 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.1244209395283699, dt = 0.004375236350605482 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.26 us (1.5%)
patch tree reduce : 1.25 us (0.4%)
gen split merge : 812.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.10 us (0.3%)
LB compute : 327.26 us (94.8%)
LB move op cnt : 0
LB apply : 3.46 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.90 us (63.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.767317472868207e-07,-4.8585482995238155e-05,-1.6629616360134534e-06)
sum a = (0.0001627671164591366,-0.0004813090007058397,-1.2558557138888014e-05)
sum e = 0.06181834244462498
sum de = 0.0010152682509974827
Info: cfl dt = 0.004307900832612932 cfl multiplier : 0.99999898015919 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5890e+05 | 100000 | 1 | 6.293e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.027578444213816 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.12879617587897538, dt = 0.001203824121024627 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.81 us (1.6%)
patch tree reduce : 1.19 us (0.3%)
gen split merge : 811.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.17 us (0.3%)
LB compute : 340.36 us (94.8%)
LB move op cnt : 0
LB apply : 3.32 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.82 us (62.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.099601098922314e-07,-4.9174419556066545e-05,-1.6779992276763024e-06)
sum a = (0.00016756204755884183,-0.00048240066121402994,-1.254813779003361e-05)
sum e = 0.061810513660197165
sum de = 0.001025254416026335
Info: cfl dt = 0.004635481040960021 cfl multiplier : 0.9999993201061267 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6219e+05 | 100000 | 1 | 6.166e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 7.028973501421302 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 36 [SPH][rank=0]
Info: time since start : 232.83019109300002 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000013.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000013.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 500.55 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 494.45 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000013.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 622.12 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 513.61 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000013.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.48853913600000004 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 904.53 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000013.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.350251637 s
Info: compute_slice took 1.25 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 883.91 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000013.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 924.83 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 913.96 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000013.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000013.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000013.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.14s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.13, dt = 0.004635481040960021 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.53 us (1.8%)
patch tree reduce : 1.42 us (0.4%)
gen split merge : 721.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.01 us (0.3%)
LB compute : 341.12 us (94.7%)
LB move op cnt : 0
LB apply : 3.51 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.87 us (63.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.289576931392186e-06,-5.141123575889205e-05,-1.7361596109696207e-06)
sum a = (0.00018644194654856224,-0.0004861461517010443,-1.2506923942304321e-05)
sum e = 0.061825611826187815
sum de = 0.0010566357289335886
Info: cfl dt = 0.004523142731473421 cfl multiplier : 0.9999995467374179 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5160e+05 | 100000 | 1 | 6.596e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.29794692893568 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.13463548104096001, dt = 0.004523142731473421 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.83 us (1.7%)
patch tree reduce : 1.49 us (0.4%)
gen split merge : 742.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.19 us (0.4%)
LB compute : 317.05 us (94.2%)
LB move op cnt : 0
LB apply : 4.21 us (1.3%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.02 us (64.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.17663917367584e-06,-5.361882526646459e-05,-1.7926346900874566e-06)
sum a = (0.00020547771833936927,-0.0004890692571338838,-1.2464983054948944e-05)
sum e = 0.06182995098524031
sum de = 0.001088202402590531
Info: cfl dt = 0.004424492306286765 cfl multiplier : 0.9999996978249452 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5737e+05 | 100000 | 1 | 6.355e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.624680924428752 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.13915862377243343, dt = 0.0008413762275665815 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.72 us (1.7%)
patch tree reduce : 1.15 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.12 us (0.3%)
LB compute : 375.03 us (95.1%)
LB move op cnt : 0
LB apply : 3.71 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.04 us (64.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.3925739975831028e-06,-5.4036927324607574e-05,-1.8030275781970131e-06)
sum a = (0.00020908288065422248,-0.0004895301945647887,-1.2456987402556468e-05)
sum e = 0.0618207365566355
sum de = 0.0010955546764997986
Info: cfl dt = 0.004408539563908909 cfl multiplier : 0.9999997985499635 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5097e+05 | 100000 | 1 | 6.624e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 4.572849690058474 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 39 [SPH][rank=0]
Info: time since start : 249.564537308 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000007.vtk [VTK Dump][rank=0]
- took 5.36 ms, bandwidth = 1.05 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000007.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.18 us (58.8%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000007.sham [Shamrock Dump][rank=0]
- took 4.75 ms, bandwidth = 2.69 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000014.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000014.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 524.25 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 503.30 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000014.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 619.64 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 505.19 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000014.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.509982974 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 874.70 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000014.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.34599435500000003 s
Info: compute_slice took 1.22 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 882.01 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000014.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 873.07 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 860.97 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000014.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.29 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000014.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000014.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.15s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.14, dt = 0.004408539563908909 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.48 us (1.9%)
patch tree reduce : 1.26 us (0.4%)
gen split merge : 852.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.10 us (0.3%)
LB compute : 322.18 us (94.3%)
LB move op cnt : 0
LB apply : 3.55 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.99 us (60.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (3.3158407980112457e-06,-5.619523446598132e-05,-1.8579413363323773e-06)
sum a = (0.00022829277908354264,-0.0004914963058551916,-1.2414092379552528e-05)
sum e = 0.06183525129895309
sum de = 0.001124183291986502
Info: cfl dt = 0.0043202015285198755 cfl multiplier : 0.9999998656999756 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6501e+05 | 100000 | 1 | 6.060e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 26.188335347381845 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.14440853956390892, dt = 0.0043202015285198755 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.56 us (1.4%)
patch tree reduce : 1.54 us (0.4%)
gen split merge : 1.05 us (0.3%)
split / merge op : 0/0
apply split merge : 1.07 us (0.3%)
LB compute : 386.15 us (95.3%)
LB move op cnt : 0
LB apply : 4.03 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.19 us (66.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (4.344455409783959e-06,-5.83229313974874e-05,-1.911478165002705e-06)
sum a = (0.00024761501838732293,-0.0004926679568002478,-1.2370377759236517e-05)
sum e = 0.061839789002973024
sum de = 0.0011530606318828319
Info: cfl dt = 0.004390070215368703 cfl multiplier : 0.9999999104666504 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5974e+05 | 100000 | 1 | 6.260e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.843626558172865 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.14872874109242878, dt = 0.00127125890757121 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.06 us (1.6%)
patch tree reduce : 1.14 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.22 us (0.3%)
LB compute : 357.74 us (94.8%)
LB move op cnt : 0
LB apply : 3.71 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.99 us (61.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (4.700976191440335e-06,-5.895177081015342e-05,-1.92710968993439e-06)
sum a = (0.0002533897022661178,-0.0004928657229532844,-1.23571889024285e-05)
sum e = 0.06183249543186072
sum de = 0.0011628729594544234
Info: cfl dt = 0.004348068833544572 cfl multiplier : 0.9999999403111003 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5130e+05 | 100000 | 1 | 6.609e-01 | 0.0% | 1.1% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 6.924175135719812 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 42 [SPH][rank=0]
Info: time since start : 266.466720414 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.94 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000015.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000015.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 530.14 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 511.15 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000015.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 621.12 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 507.84 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000015.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.6898022690000001 s
Info: compute_slice took 1.59 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 921.79 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000015.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.347938858 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 913.25 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000015.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 902.54 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 931.17 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000015.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000015.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000015.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.16s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.15, dt = 0.004348068833544572 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 7.12 us (1.7%)
patch tree reduce : 1.42 us (0.3%)
gen split merge : 1.08 us (0.3%)
split / merge op : 0/0
apply split merge : 1.12 us (0.3%)
LB compute : 408.79 us (95.1%)
LB move op cnt : 0
LB apply : 4.22 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.26 us (65.9%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.806402617777818e-06,-6.109491060523421e-05,-1.9808312146454214e-06)
sum a = (0.00027343306289932465,-0.0004930124949238387,-1.23109516442915e-05)
sum e = 0.06184651558399256
sum de = 0.001189638735270226
Info: cfl dt = 0.004405362372123803 cfl multiplier : 0.9999999602074002 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6062e+05 | 100000 | 1 | 6.226e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.141972486009813 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.15434806883354457, dt = 0.004405362372123803 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.07 us (1.5%)
patch tree reduce : 1.24 us (0.3%)
gen split merge : 1.14 us (0.3%)
split / merge op : 0/0
apply split merge : 1.10 us (0.3%)
LB compute : 374.41 us (95.2%)
LB move op cnt : 0
LB apply : 3.36 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.95 us (63.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (7.054549300211985e-06,-6.326712838667343e-05,-2.0349648963936917e-06)
sum a = (0.0002941725292865666,-0.0004923013470661186,-1.226227841511271e-05)
sum e = 0.061852091951896664
sum de = 0.0012173252457677879
Info: cfl dt = 0.00433605116378322 cfl multiplier : 0.9999999734716001 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5826e+05 | 100000 | 1 | 6.319e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 25.099444751951832 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.15875343120566837, dt = 0.0012465687943316317 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.04 us (1.5%)
patch tree reduce : 1.24 us (0.3%)
gen split merge : 1.11 us (0.3%)
split / merge op : 0/0
apply split merge : 1.19 us (0.3%)
LB compute : 375.08 us (95.0%)
LB move op cnt : 0
LB apply : 3.31 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.41 us (64.5%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (7.466938027787857e-06,-6.387924945133573e-05,-2.050143458407201e-06)
sum a = (0.00030011450670898785,-0.0004919389119392896,-1.224816349036907e-05)
sum e = 0.06184441197706306
sum de = 0.001226635663399197
Info: cfl dt = 0.0043188504517413925 cfl multiplier : 0.9999999823144 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5635e+05 | 100000 | 1 | 6.396e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 7.016289876588521 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 45 [SPH][rank=0]
Info: time since start : 283.425659876 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000008.vtk [VTK Dump][rank=0]
- took 5.52 ms, bandwidth = 1.01 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000008.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.94 us (58.8%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000008.sham [Shamrock Dump][rank=0]
- took 4.69 ms, bandwidth = 2.73 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000016.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000016.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 530.02 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 526.00 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000016.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 632.57 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 526.07 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000016.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.49724445400000006 s
Info: compute_slice took 1.40 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 877.78 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000016.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.35200337400000004 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 882.62 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000016.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 895.30 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 878.58 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000016.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000016.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000016.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.17s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.16, dt = 0.0043188504517413925 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.61 us (1.6%)
patch tree reduce : 1.50 us (0.4%)
gen split merge : 821.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.46 us (0.3%)
LB compute : 403.22 us (95.1%)
LB move op cnt : 0
LB apply : 3.98 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.20 us (64.5%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (8.766791242488739e-06,-6.60036341432386e-05,-2.1030326472182113e-06)
sum a = (0.0003209353611793964,-0.0004901102764396932,-1.2198086040775586e-05)
sum e = 0.06185859416468969
sum de = 0.0012514228184543521
Info: cfl dt = 0.004253461174538199 cfl multiplier : 0.9999999882095999 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5114e+05 | 100000 | 1 | 6.616e-01 | 0.0% | 1.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.498684224851484 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.16431885045174138, dt = 0.004253461174538199 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.98 us (1.8%)
patch tree reduce : 1.25 us (0.3%)
gen split merge : 882.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.20 us (0.3%)
LB compute : 366.81 us (94.7%)
LB move op cnt : 0
LB apply : 4.10 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.06 us (62.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.0176838419163139e-05,-6.80843503736928e-05,-2.154808594088422e-06)
sum a = (0.00034176556153352785,-0.0004874210213433939,-1.2146944728836917e-05)
sum e = 0.061863696873839115
sum de = 0.0012764694049346005
Info: cfl dt = 0.0042925357215988615 cfl multiplier : 0.9999999921397332 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5775e+05 | 100000 | 1 | 6.339e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.15537238447475 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.1685723116262796, dt = 0.001427688373720426 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.87 us (1.6%)
patch tree reduce : 1.36 us (0.4%)
gen split merge : 752.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.18 us (0.3%)
LB compute : 347.00 us (94.7%)
LB move op cnt : 0
LB apply : 3.39 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.35 us (61.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.0709073362128425e-05,-6.877451637789517e-05,-2.1720418820616363e-06)
sum a = (0.00034882238449006646,-0.00048631652625212644,-1.2129365276500238e-05)
sum e = 0.06185722842065253
sum de = 0.0012861900626683536
Info: cfl dt = 0.004259224737071728 cfl multiplier : 0.9999999947598223 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.4643e+05 | 100000 | 1 | 6.829e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 7.525775183681681 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 48 [SPH][rank=0]
Info: time since start : 300.207110465 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000017.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000017.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 551.69 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 499.17 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000017.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 627.59 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 513.49 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000017.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.490973665 s
Info: compute_slice took 1.39 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 907.82 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000017.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.34766784 s
Info: compute_slice took 1.26 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 928.77 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000017.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 908.56 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 906.77 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000017.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000017.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000017.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.18s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.17, dt = 0.004259224737071728 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.92 us (1.9%)
patch tree reduce : 1.59 us (0.4%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.36 us (0.4%)
LB compute : 338.04 us (94.3%)
LB move op cnt : 0
LB apply : 3.48 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.27 us (67.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.2199823763039379e-05,-7.084505931915064e-05,-2.2236910257024363e-06)
sum a = (0.00037005019296675816,-0.00048239770000771805,-1.2075675701535604e-05)
sum e = 0.06187109553873669
sum de = 0.0013086549236115063
Info: cfl dt = 0.004125230427244563 cfl multiplier : 0.9999999965065482 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5938e+05 | 100000 | 1 | 6.274e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.438345377563813 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.17425922473707173, dt = 0.004125230427244563 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.86 us (1.5%)
patch tree reduce : 1.15 us (0.3%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 379.08 us (95.3%)
LB move op cnt : 0
LB apply : 3.48 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.95 us (61.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.377157308216224e-05,-7.282671540840511e-05,-2.2733916325530476e-06)
sum a = (0.0003908278817091425,-0.0004776960653879575,-1.2021862421615727e-05)
sum e = 0.061875974036908844
sum de = 0.0013310111052794002
Info: cfl dt = 0.004098613799314524 cfl multiplier : 0.9999999976710322 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6506e+05 | 100000 | 1 | 6.059e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 24.51233565154438 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.17838445516431628, dt = 0.0016155448356837132 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.24 us (1.7%)
patch tree reduce : 1.41 us (0.4%)
gen split merge : 862.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.06 us (0.3%)
LB compute : 356.17 us (94.8%)
LB move op cnt : 0
LB apply : 3.59 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.06 us (63.4%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.4445829425003417e-05,-7.358875715678742e-05,-2.2927024942137285e-06)
sum a = (0.0003990143720040045,-0.0004756076849280726,-1.2000292501083122e-05)
sum e = 0.06187066412999027
sum de = 0.001340912561599375
Info: cfl dt = 0.00406541261401062 cfl multiplier : 0.9999999984473549 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6193e+05 | 100000 | 1 | 6.176e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 9.417754596797685 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 51 [SPH][rank=0]
Info: time since start : 316.98925572 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000009.vtk [VTK Dump][rank=0]
- took 5.55 ms, bandwidth = 1.01 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000009.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.77 us (54.2%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000009.sham [Shamrock Dump][rank=0]
- took 4.68 ms, bandwidth = 2.74 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000018.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000018.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 505.90 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 506.44 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000018.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 740.27 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 655.19 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000018.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.535803494 s
Info: compute_slice took 1.47 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 913.16 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000018.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.35165791700000004 s
Info: compute_slice took 1.21 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 874.05 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000018.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 878.97 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 906.59 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000018.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000018.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000018.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.19s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.18, dt = 0.00406541261401062 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.53 us (1.8%)
patch tree reduce : 1.46 us (0.4%)
gen split merge : 742.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 942.00 ns (0.3%)
LB compute : 348.19 us (94.7%)
LB move op cnt : 0
LB apply : 3.38 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.02 us (64.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.6074600307188465e-05,-7.552061170227197e-05,-2.3414712111325795e-06)
sum a = (0.00041971742198644287,-0.0004697197306506781,-1.1944769084215e-05)
sum e = 0.06188338681964292
sum de = 0.0013603221581913012
Info: cfl dt = 0.004201870716414563 cfl multiplier : 0.9999999989649032 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6206e+05 | 100000 | 1 | 6.171e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.717635815729125 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.1840654126140106, dt = 0.004201870716414563 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.04 us (1.6%)
patch tree reduce : 1.53 us (0.4%)
gen split merge : 972.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 362.06 us (93.2%)
LB move op cnt : 0
LB apply : 10.09 us (2.6%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.05 us (63.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.7880281872068392e-05,-7.748234480163141e-05,-2.3915487237622336e-06)
sum a = (0.000441233604670187,-0.00046266945703085774,-1.1885475324822246e-05)
sum e = 0.061889747733170325
sum de = 0.001380522636308265
Info: cfl dt = 0.004109423176471839 cfl multiplier : 0.9999999993099354 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5860e+05 | 100000 | 1 | 6.305e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.990860638231823 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.18826728333042517, dt = 0.0017327166695748353 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.61 us (1.5%)
patch tree reduce : 1.18 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.06 us (0.3%)
LB compute : 363.70 us (95.1%)
LB move op cnt : 0
LB apply : 3.48 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.98 us (63.4%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (1.8690018803025057e-05,-7.826920771319402e-05,-2.412018312627735e-06)
sum a = (0.0004501303310182045,-0.00045947322302586325,-1.1860449111229317e-05)
sum e = 0.06188452924998972
sum de = 0.0013901309985242956
Info: cfl dt = 0.00407337747644122 cfl multiplier : 0.999999999539957 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5230e+05 | 100000 | 1 | 6.566e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 9.500280738733169 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 54 [SPH][rank=0]
Info: time since start : 333.962010614 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000019.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.99 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000019.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 516.27 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 497.62 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000019.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 624.64 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 506.62 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000019.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.489859356 s
Info: compute_slice took 1.41 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 938.39 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000019.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.352027079 s
Info: compute_slice took 1.31 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 958.97 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000019.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 932.90 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 931.67 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000019.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000019.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000019.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.20s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.19, dt = 0.00407337747644122 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.61 us (1.8%)
patch tree reduce : 1.46 us (0.4%)
gen split merge : 732.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 992.00 ns (0.3%)
LB compute : 340.79 us (94.4%)
LB move op cnt : 0
LB apply : 3.73 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.16 us (65.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.0531277307884772e-05,-8.013804650692088e-05,-2.460308717229168e-06)
sum a = (0.0004710765895671584,-0.0004512792108862687,-1.1800278946184341e-05)
sum e = 0.061897311681818425
sum de = 0.0014070975477396607
Info: cfl dt = 0.003984693422310468 cfl multiplier : 0.9999999996933046 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5768e+05 | 100000 | 1 | 6.342e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.122963210042926 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.1940733774764412, dt = 0.003984693422310468 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.82 us (1.8%)
patch tree reduce : 1.20 us (0.4%)
gen split merge : 952.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.07 us (0.3%)
LB compute : 307.72 us (94.3%)
LB move op cnt : 0
LB apply : 3.46 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.84 us (64.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.2451034104632647e-05,-8.191956715792903e-05,-2.50720666322993e-06)
sum a = (0.0004915741135241383,-0.00044233226371849895,-1.1739568333045616e-05)
sum e = 0.06190259530859867
sum de = 0.0014239974257779036
Info: cfl dt = 0.0038739947648003268 cfl multiplier : 0.9999999997955363 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5571e+05 | 100000 | 1 | 6.422e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 22.336939795980722 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.1980580708987517, dt = 0.0019419291012483242 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.11 us (1.5%)
patch tree reduce : 1.14 us (0.3%)
gen split merge : 732.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 315.12 us (94.7%)
LB move op cnt : 0
LB apply : 3.46 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.00 us (65.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.3446474355550708e-05,-8.276071963249646e-05,-2.5298831160215437e-06)
sum a = (0.0005015531686678988,-0.0004376354389008513,-1.1709305346060288e-05)
sum e = 0.06189905488605162
sum de = 0.0014331402908681783
Info: cfl dt = 0.003822435234391317 cfl multiplier : 0.9999999998636909 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5623e+05 | 100000 | 1 | 6.401e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 10.921765029999566 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 57 [SPH][rank=0]
Info: time since start : 350.929796204 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000010.vtk [VTK Dump][rank=0]
- took 5.59 ms, bandwidth = 1.00 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000010.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.05 us (56.3%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000010.sham [Shamrock Dump][rank=0]
- took 4.73 ms, bandwidth = 2.71 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000020.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000020.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 513.27 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 511.06 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000020.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 624.10 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 515.03 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000020.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.7100729410000001 s
Info: compute_slice took 1.60 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 894.54 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000020.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.348141211 s
Info: compute_slice took 1.21 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 889.17 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000020.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 880.02 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 874.34 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000020.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000020.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000020.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.21s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.2, dt = 0.003822435234391317 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 7.05 us (1.6%)
patch tree reduce : 1.70 us (0.4%)
gen split merge : 731.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.23 us (0.3%)
LB compute : 414.06 us (95.1%)
LB move op cnt : 0
LB apply : 3.66 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.18 us (68.5%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.5373318168183578e-05,-8.442899230358904e-05,-2.5746117930590058e-06)
sum a = (0.0005211516906358184,-0.0004277351248721289,-1.1648427346900955e-05)
sum e = 0.06191023082895091
sum de = 0.001446731552458714
Info: cfl dt = 0.0040553235649241825 cfl multiplier : 0.9999999999091272 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6119e+05 | 100000 | 1 | 6.204e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 22.180595625200212 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.20382243523439134, dt = 0.0040553235649241825 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.45 us (1.7%)
patch tree reduce : 1.27 us (0.4%)
gen split merge : 831.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.08 us (0.3%)
LB compute : 310.81 us (94.4%)
LB move op cnt : 0
LB apply : 3.74 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.22 us (64.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.752421394056388e-05,-8.614467498041235e-05,-2.6217335838687274e-06)
sum a = (0.000541843425984026,-0.0004162764582002216,-1.1581905615009664e-05)
sum e = 0.06191710192631671
sum de = 0.0014608827099893665
Info: cfl dt = 0.0038996474457799043 cfl multiplier : 0.9999999999394182 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5899e+05 | 100000 | 1 | 6.290e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.210982871298974 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.20787775879931553, dt = 0.002122241200684466 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.87 us (1.5%)
patch tree reduce : 1.32 us (0.3%)
gen split merge : 812.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.06 us (0.3%)
LB compute : 362.32 us (95.1%)
LB move op cnt : 0
LB apply : 3.35 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.95 us (65.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (2.871609222448426e-05,-8.700487973039901e-05,-2.6461782975738683e-06)
sum a = (0.0005526148268363945,-0.00040988672007109605,-1.1546283368810371e-05)
sum e = 0.06191396205820194
sum de = 0.001469287427824229
Info: cfl dt = 0.0038229714293220164 cfl multiplier : 0.9999999999596122 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6321e+05 | 100000 | 1 | 6.127e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 12.469066664276584 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 60 [SPH][rank=0]
Info: time since start : 367.736286995 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000021.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000021.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 514.21 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 514.84 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000021.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 639.22 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 528.53 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000021.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.48943774100000004 s
Info: compute_slice took 1.39 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 876.63 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000021.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.347615897 s
Info: compute_slice took 1.21 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 875.42 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000021.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 879.23 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 884.40 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000021.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000021.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000021.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.22s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.21, dt = 0.0038229714293220164 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.91 us (2.0%)
patch tree reduce : 1.60 us (0.5%)
gen split merge : 1.00 us (0.3%)
split / merge op : 0/0
apply split merge : 1.05 us (0.3%)
LB compute : 320.55 us (94.0%)
LB move op cnt : 0
LB apply : 3.40 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.89 us (62.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (3.08401526742338e-05,-8.856508466773672e-05,-2.6902816095084277e-06)
sum a = (0.0005718919795060254,-0.00039768660276563386,-1.1480690999038428e-05)
sum e = 0.06192491057984305
sum de = 0.0014800994941750853
Info: cfl dt = 0.0036937616588836267 cfl multiplier : 0.9999999999730749 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 9.2737e+04 | 100000 | 1 | 1.078e+00 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 12.763066301204137 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.213822971429322, dt = 0.0036937616588836267 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.44 us (0.3%)
patch tree reduce : 1.54 us (0.1%)
gen split merge : 1.01 us (0.1%)
split / merge op : 0/0
apply split merge : 1.46 us (0.1%)
LB compute : 1.83 ms (98.9%)
LB move op cnt : 0
LB apply : 3.83 us (0.2%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.68 us (69.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (3.2989433343119416e-05,-9.001072384332114e-05,-2.7325631668603618e-06)
sum a = (0.000590330182350537,-0.00038505607278463964,-1.1415544147818306e-05)
sum e = 0.061929900912087395
sum de = 0.0014905823845534959
Info: cfl dt = 0.00378955652917313 cfl multiplier : 0.9999999999820499 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.2594e+05 | 100000 | 1 | 7.940e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 16.747000406941766 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.21751673308820563, dt = 0.002483266911794374 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.06 us (1.7%)
patch tree reduce : 1.22 us (0.3%)
gen split merge : 831.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.17 us (0.3%)
LB compute : 335.85 us (94.7%)
LB move op cnt : 0
LB apply : 3.56 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.83 us (63.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (3.448943391534635e-05,-9.094359376436989e-05,-2.760790691452143e-06)
sum a = (0.000602603314391868,-0.0003760991269073217,-1.1370750274871027e-05)
sum e = 0.06192968717217475
sum de = 0.001497845663572065
Info: cfl dt = 0.003955108986921404 cfl multiplier : 0.9999999999880332 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6004e+05 | 100000 | 1 | 6.248e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 14.307063468470862 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 63 [SPH][rank=0]
Info: time since start : 385.002781915 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000011.vtk [VTK Dump][rank=0]
- took 5.46 ms, bandwidth = 1.02 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000011.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.23 us (55.8%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000011.sham [Shamrock Dump][rank=0]
- took 10.36 ms, bandwidth = 1.24 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.01 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000022.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.99 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000022.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 538.07 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 498.96 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000022.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 628.72 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 501.67 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000022.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.515409293 s
Info: compute_slice took 1.43 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 918.13 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000022.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.345317821 s
Info: compute_slice took 1.26 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 931.19 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000022.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 940.58 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 952.49 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000022.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.01 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000022.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000022.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.23s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.22, dt = 0.003955108986921404 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.55 us (1.8%)
patch tree reduce : 1.47 us (0.4%)
gen split merge : 752.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.24 us (0.3%)
LB compute : 345.08 us (94.4%)
LB move op cnt : 0
LB apply : 3.75 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.16 us (65.5%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (3.6888034430988276e-05,-9.241998555751504e-05,-2.8057076304810444e-06)
sum a = (0.0006219144094178706,-0.00036105629018233645,-1.1297728612140459e-05)
sum e = 0.06194062570654764
sum de = 0.0015058697857624986
Info: cfl dt = 0.0037912886044100874 cfl multiplier : 0.999999999992022 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6132e+05 | 100000 | 1 | 6.199e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 22.969862335020807 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2239551089869214, dt = 0.0037912886044100874 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.85 us (1.6%)
patch tree reduce : 1.16 us (0.3%)
gen split merge : 852.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.00 us (0.3%)
LB compute : 346.69 us (94.9%)
LB move op cnt : 0
LB apply : 3.60 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.67 us (59.9%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (3.928408018707573e-05,-9.375910612667245e-05,-2.8483961759067313e-06)
sum a = (0.0006401146155748493,-0.00034574445881218046,-1.1225759441952857e-05)
sum e = 0.0619456961244437
sum de = 0.0015134665249386585
Info: cfl dt = 0.003640601941020706 cfl multiplier : 0.9999999999946813 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5826e+05 | 100000 | 1 | 6.319e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 21.599901759035788 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.22774639759133147, dt = 0.002253602408668537 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.55 us (2.0%)
patch tree reduce : 1.25 us (0.4%)
gen split merge : 1.09 us (0.3%)
split / merge op : 0/0
apply split merge : 1.10 us (0.3%)
LB compute : 305.42 us (93.8%)
LB move op cnt : 0
LB apply : 3.60 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.28 us (61.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (4.0761145143657575e-05,-9.450925088594448e-05,-2.8735581464768295e-06)
sum a = (0.0006507714268716686,-0.0003362315359564658,-1.1182048961529757e-05)
sum e = 0.061944212850091336
sum de = 0.0015184416356872528
Info: cfl dt = 0.004024715971581166 cfl multiplier : 0.9999999999964541 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6085e+05 | 100000 | 1 | 6.217e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 13.049922690863614 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 66 [SPH][rank=0]
Info: time since start : 402.053909377 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000023.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.98 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000023.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 514.64 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 510.56 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000023.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 660.38 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 511.42 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000023.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.490717728 s
Info: compute_slice took 1.39 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 897.24 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000023.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.351626198 s
Info: compute_slice took 1.25 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 899.78 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000023.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 891.67 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 915.72 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000023.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000023.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000023.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.24s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.23, dt = 0.004024715971581166 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.99 us (2.0%)
patch tree reduce : 1.26 us (0.4%)
gen split merge : 972.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.05 us (0.3%)
LB compute : 327.16 us (94.2%)
LB move op cnt : 0
LB apply : 3.68 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.06 us (63.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (4.339232340704281e-05,-9.58517681459247e-05,-2.9185134645053303e-06)
sum a = (0.0006694699806958038,-0.00031847851395766264,-1.110223650194805e-05)
sum e = 0.061956219976991
sum de = 0.0015229303145077562
Info: cfl dt = 0.004008756227553269 cfl multiplier : 0.999999999997636 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5916e+05 | 100000 | 1 | 6.283e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.060076154189 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.23402471597158117, dt = 0.004008756227553269 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.68 us (1.8%)
patch tree reduce : 1.16 us (0.3%)
gen split merge : 871.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.07 us (0.3%)
LB compute : 344.18 us (94.5%)
LB move op cnt : 0
LB apply : 3.93 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.98 us (63.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (4.611369354542326e-05,-9.709274543651378e-05,-2.9628590129818645e-06)
sum a = (0.0006876263386062845,-0.0002998329971953546,-1.1020469916603627e-05)
sum e = 0.061962284084283455
sum de = 0.001527175382833183
Info: cfl dt = 0.004105134706255141 cfl multiplier : 0.999999999998424 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6428e+05 | 100000 | 1 | 6.087e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.70851632222279 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.23803347219913443, dt = 0.001966527800865564 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.06 us (1.7%)
patch tree reduce : 1.19 us (0.3%)
gen split merge : 721.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.09 us (0.3%)
LB compute : 333.66 us (94.6%)
LB move op cnt : 0
LB apply : 3.92 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.09 us (64.1%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (4.750232206332251e-05,-9.764500269539258e-05,-2.9843671822973716e-06)
sum a = (0.0006963472082530185,-0.00029033960688373876,-1.0979515534101905e-05)
sum e = 0.061958829395122345
sum de = 0.0015302097584292058
Info: cfl dt = 0.004061922304648192 cfl multiplier : 0.9999999999989493 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6155e+05 | 100000 | 1 | 6.190e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 11.437087006164665 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 69 [SPH][rank=0]
Info: time since start : 418.820543706 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000012.vtk [VTK Dump][rank=0]
- took 5.58 ms, bandwidth = 1.00 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000012.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.69 us (54.6%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000012.sham [Shamrock Dump][rank=0]
- took 4.87 ms, bandwidth = 2.63 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000024.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000024.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 497.04 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 499.18 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000024.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 622.10 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 505.11 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000024.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.49486400300000005 s
Info: compute_slice took 1.36 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 882.41 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000024.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.353607025 s
Info: compute_slice took 1.24 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 880.21 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000024.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 905.29 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 905.34 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000024.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000024.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000024.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.25s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.24, dt = 0.004061922304648192 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.34 us (1.4%)
patch tree reduce : 1.40 us (0.3%)
gen split merge : 761.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.00 us (0.2%)
LB compute : 419.38 us (95.4%)
LB move op cnt : 0
LB apply : 3.65 us (0.8%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.13 us (71.4%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.033940523661248e-05,-9.881500511252642e-05,-3.0289248523737125e-06)
sum a = (0.0007139398079435105,-0.000270010383866081,-1.0893143599045028e-05)
sum e = 0.06197175933532271
sum de = 0.001530826506142112
Info: cfl dt = 0.003962497660220096 cfl multiplier : 0.9999999999992996 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.4297e+05 | 100000 | 1 | 6.994e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 20.906859790448774 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.24406192230464818, dt = 0.003962497660220096 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.20 us (1.9%)
patch tree reduce : 1.47 us (0.4%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.35 us (0.4%)
LB compute : 315.26 us (94.3%)
LB move op cnt : 0
LB apply : 3.43 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.99 us (61.4%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.320411994166395e-05,-9.984363276464308e-05,-3.071913490352591e-06)
sum a = (0.0007305146648994524,-0.00024926032090169157,-1.0806532346242623e-05)
sum e = 0.06197742121683045
sum de = 0.0015313947958626977
Info: cfl dt = 0.003814490170342217 cfl multiplier : 0.9999999999995332 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.4379e+05 | 100000 | 1 | 6.955e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 20.51123644557289 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2480244199648683, dt = 0.0019755800351317077 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.33 us (1.9%)
patch tree reduce : 1.32 us (0.4%)
gen split merge : 761.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.16 us (0.3%)
LB compute : 319.17 us (94.2%)
LB move op cnt : 0
LB apply : 3.53 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.98 us (66.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.468014904496685e-05,-0.00010029495544017885,-3.0930910614615535e-06)
sum a = (0.0007385468469295648,-0.00023858283151207365,-1.0762467114477147e-05)
sum e = 0.06197417532676341
sum de = 0.0015325367292470984
Info: cfl dt = 0.003800078988147665 cfl multiplier : 0.9999999999996888 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6439e+05 | 100000 | 1 | 6.083e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 11.691231732480164 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 72 [SPH][rank=0]
Info: time since start : 435.62098119 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.00 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000025.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.98 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000025.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 535.56 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 513.17 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000025.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 631.03 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 527.22 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000025.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.734584828 s
Info: compute_slice took 1.81 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 922.86 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000025.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.349508971 s
Info: compute_slice took 1.28 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 935.17 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000025.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 957.45 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 957.95 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000025.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000025.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000025.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.26s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.25, dt = 0.003800078988147665 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.93 us (1.9%)
patch tree reduce : 1.55 us (0.4%)
gen split merge : 1.07 us (0.3%)
split / merge op : 0/0
apply split merge : 1.14 us (0.3%)
LB compute : 353.36 us (94.5%)
LB move op cnt : 0
LB apply : 3.76 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.00 us (65.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (5.7494619508980155e-05,-0.00010119104192771671,-3.1339457594078483e-06)
sum a = (0.00075353483248285,-0.00021742889003220078,-1.0676033328393733e-05)
sum e = 0.06198561738114827
sum de = 0.0015296817181396623
Info: cfl dt = 0.0036952223726952472 cfl multiplier : 0.9999999999997925 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5118e+05 | 100000 | 1 | 6.615e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 20.681427123737418 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.25380007898814766, dt = 0.0036952223726952472 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.91 us (1.7%)
patch tree reduce : 1.17 us (0.3%)
gen split merge : 861.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.11 us (0.3%)
LB compute : 336.38 us (94.6%)
LB move op cnt : 0
LB apply : 3.83 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.89 us (62.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (6.030757604506637e-05,-0.00010195429670235173,-3.173231849007402e-06)
sum a = (0.0007674930822375328,-0.00019610049241445464,-1.0589841074881174e-05)
sum e = 0.06199086075884519
sum de = 0.0015267808379697276
Info: cfl dt = 0.003599158922730853 cfl multiplier : 0.9999999999998618 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5877e+05 | 100000 | 1 | 6.298e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 21.12082797291271 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2574953013608429, dt = 0.002504698639157088 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.67 us (1.6%)
patch tree reduce : 1.25 us (0.3%)
gen split merge : 851.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.13 us (0.3%)
LB compute : 347.12 us (94.9%)
LB move op cnt : 0
LB apply : 3.53 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.32 us (62.9%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (6.225570434209313e-05,-0.0001024060627528203,-3.1995969597647737e-06)
sum a = (0.0007765894196866392,-0.00018122954453356246,-1.0530199975759285e-05)
sum e = 0.061990746397575555
sum de = 0.0015249332644738298
Info: cfl dt = 0.0037071507942701616 cfl multiplier : 0.999999999999908 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6307e+05 | 100000 | 1 | 6.132e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 14.704282541637491 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 75 [SPH][rank=0]
Info: time since start : 453.10746808700003 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000013.vtk [VTK Dump][rank=0]
- took 5.51 ms, bandwidth = 1.02 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000013.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.74 us (55.3%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000013.sham [Shamrock Dump][rank=0]
- took 5.32 ms, bandwidth = 2.41 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000026.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000026.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 528.78 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 509.01 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000026.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 637.08 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 509.05 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000026.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.496040293 s
Info: compute_slice took 1.43 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 937.76 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000026.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.34861353300000003 s
Info: compute_slice took 1.28 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 918.04 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000026.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 929.52 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 901.27 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000026.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.99 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000026.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000026.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.27s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.26, dt = 0.0037071507942701616 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.92 us (1.7%)
patch tree reduce : 1.44 us (0.3%)
gen split merge : 832.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.24 us (0.3%)
LB compute : 393.87 us (94.9%)
LB move op cnt : 0
LB apply : 4.37 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.31 us (68.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (6.514603021813334e-05,-0.00010305928438132784,-3.238559307478815e-06)
sum a = (0.0007894819130975395,-0.00015861781723966318,-1.044010023368832e-05)
sum e = 0.06200039472537217
sum de = 0.0015187421361740057
Info: cfl dt = 0.003906723346140677 cfl multiplier : 0.9999999999999387 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5317e+05 | 100000 | 1 | 6.529e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 20.441976045271563 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.26370715079427015, dt = 0.003906723346140677 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.89 us (1.8%)
patch tree reduce : 1.28 us (0.4%)
gen split merge : 811.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 992.00 ns (0.3%)
LB compute : 311.88 us (94.5%)
LB move op cnt : 0
LB apply : 3.33 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.19 us (66.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (6.825421484796539e-05,-0.0001036370477696427,-3.2791788841326394e-06)
sum a = (0.0008022944662595995,-0.00013403677870028275,-1.0342765033432849e-05)
sum e = 0.062007144713336446
sum de = 0.0015113606868787774
Info: cfl dt = 0.0037988137907088862 cfl multiplier : 0.9999999999999591 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6369e+05 | 100000 | 1 | 6.109e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.022035146775465 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2676138741404108, dt = 0.0023861258595891943 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.18 us (1.7%)
patch tree reduce : 1.13 us (0.3%)
gen split merge : 1.09 us (0.3%)
split / merge op : 0/0
apply split merge : 1.07 us (0.3%)
LB compute : 349.62 us (94.9%)
LB move op cnt : 0
LB apply : 3.54 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.22 us (62.7%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (7.019361797119089e-05,-0.00010390886073487078,-3.303667892388948e-06)
sum a = (0.000809711799132064,-0.00011865774444812208,-1.0282100007201995e-05)
sum e = 0.06200561954965201
sum de = 0.0015074441164853662
Info: cfl dt = 0.003738448851130517 cfl multiplier : 0.9999999999999728 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5848e+05 | 100000 | 1 | 6.310e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 13.61350518962723 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 78 [SPH][rank=0]
Info: time since start : 470.09603639100004 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000027.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000027.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 510.10 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 507.69 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000027.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 635.46 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 545.44 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000027.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.49755961200000004 s
Info: compute_slice took 1.42 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 943.32 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000027.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.351721383 s
Info: compute_slice took 1.26 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 873.56 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000027.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 871.02 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 908.46 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000027.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000027.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000027.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.28s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.27, dt = 0.003738448851130517 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.50 us (1.6%)
patch tree reduce : 1.45 us (0.4%)
gen split merge : 761.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 992.00 ns (0.2%)
LB compute : 380.91 us (95.0%)
LB move op cnt : 0
LB apply : 3.68 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.00 us (18.9%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (7.32295334612972e-05,-0.00010433410848761861,-3.3420346201541326e-06)
sum a = (0.0008206815353472771,-9.402154937021375e-05,-1.0185183925966945e-05)
sum e = 0.06201569660243804
sum de = 0.0014972134388927321
Info: cfl dt = 0.0037833484067091015 cfl multiplier : 0.9999999999999819 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5852e+05 | 100000 | 1 | 6.308e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 21.334528752996665 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2737384488511305, dt = 0.0037833484067091015 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.00 us (1.8%)
patch tree reduce : 1.34 us (0.4%)
gen split merge : 841.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.00 us (0.3%)
LB compute : 311.42 us (94.2%)
LB move op cnt : 0
LB apply : 3.45 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.60 us (64.3%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (7.635496253934633e-05,-0.00010464377418903515,-3.3803875616262067e-06)
sum a = (0.0008309418404454931,-6.844615680399432e-05,-1.0084759427815477e-05)
sum e = 0.062021538397925846
sum de = 0.0014862692599211024
Info: cfl dt = 0.003654507973723497 cfl multiplier : 0.9999999999999879 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6493e+05 | 100000 | 1 | 6.063e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 22.46337839722983 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2775217972578396, dt = 0.002478202742160429 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.69 us (1.7%)
patch tree reduce : 1.26 us (0.4%)
gen split merge : 851.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.42 us (0.4%)
LB compute : 311.25 us (94.3%)
LB move op cnt : 0
LB apply : 3.59 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.10 us (65.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (7.843361404137993e-05,-0.00010476501733215598,-3.4051896696617218e-06)
sum a = (0.0008371872624182569,-5.135977296255063e-05,-1.0017688362836114e-05)
sum e = 0.06202081698689186
sum de = 0.0014793854254640851
Info: cfl dt = 0.003577453641793273 cfl multiplier : 0.999999999999992 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5968e+05 | 100000 | 1 | 6.262e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 14.246220720605466 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 81 [SPH][rank=0]
Info: time since start : 486.926151348 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000014.vtk [VTK Dump][rank=0]
- took 5.48 ms, bandwidth = 1.02 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000014.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.78 us (55.4%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000014.sham [Shamrock Dump][rank=0]
- took 7.90 ms, bandwidth = 1.62 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.98 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000028.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000028.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 500.06 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 508.01 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000028.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 628.70 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 500.00 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000028.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.514542958 s
Info: compute_slice took 1.39 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 905.13 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000028.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.34986311200000003 s
Info: compute_slice took 1.25 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 922.46 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000028.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 913.32 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 905.75 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000028.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.97 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000028.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000028.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.29s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.28, dt = 0.003577453641793273 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.59 us (1.8%)
patch tree reduce : 1.31 us (0.3%)
gen split merge : 812.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.00 us (0.3%)
LB compute : 356.52 us (94.8%)
LB move op cnt : 0
LB apply : 3.78 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.06 us (63.8%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (8.1436351373111e-05,-0.00010492758277734116,-3.4409443775291265e-06)
sum a = (0.0008455146923817939,-2.6247960548106862e-05,-9.919049138715465e-06)
sum e = 0.062029687304726355
sum de = 0.0014660027598865503
Info: cfl dt = 0.003920626301018456 cfl multiplier : 0.9999999999999947 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.3632e+05 | 100000 | 1 | 7.336e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 17.55662451886047 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2835774536417933, dt = 0.003920626301018456 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.23 us (1.6%)
patch tree reduce : 1.47 us (0.4%)
gen split merge : 822.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.37 us (0.4%)
LB compute : 362.39 us (94.9%)
LB move op cnt : 0
LB apply : 3.69 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.96 us (63.6%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (8.476619401128547e-05,-0.00010498557304942649,-3.4796568238376826e-06)
sum a = (0.0008536770784521619,1.8438942333680925e-06,-9.808457806136899e-06)
sum e = 0.06203681111128744
sum de = 0.0014502160255166125
Info: cfl dt = 0.004103364379572884 cfl multiplier : 0.9999999999999964 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 8.8906e+04 | 100000 | 1 | 1.125e+00 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 12.548449002675149 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2874980799428118, dt = 0.0025019200571881894 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.75 us (1.4%)
patch tree reduce : 1.24 us (0.3%)
gen split merge : 822.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.01 us (0.2%)
LB compute : 389.65 us (95.3%)
LB move op cnt : 0
LB apply : 3.66 us (0.9%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.20 us (66.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (8.691802664899206e-05,-0.00010492589094111699,-3.503980007509355e-06)
sum a = (0.0008583440438993586,2.006185960485449e-05,-9.736510807112062e-06)
sum e = 0.062035504685285105
sum de = 0.00144069527194721
Info: cfl dt = 0.004032087480858607 cfl multiplier : 0.9999999999999977 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.3165e+05 | 100000 | 1 | 7.596e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 11.857341843506328 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 84 [SPH][rank=0]
Info: time since start : 504.481832782 (s) [SPH][rank=0]
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000029.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.95 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000029.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 523.56 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 510.73 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000029.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 628.66 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 514.26 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000029.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.509975034 s
Info: compute_slice took 1.37 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 877.78 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000029.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.348752813 s
Info: compute_slice took 1.25 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 911.52 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000029.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 912.75 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 905.62 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000029.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000029.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000029.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Info: evolve_until (target_time = 0.30s, niter_max = -1, max_walltime = -1.00s) [SPH][rank=0]
---------------- t = 0.29, dt = 0.004032087480858607 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.45 us (1.8%)
patch tree reduce : 1.66 us (0.5%)
gen split merge : 751.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 992.00 ns (0.3%)
LB compute : 345.64 us (94.5%)
LB move op cnt : 0
LB apply : 3.90 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1.99 us (65.0%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (9.038478310988501e-05,-0.00010482220982167285,-3.543148468021998e-06)
sum a = (0.000864948215771155,4.9870287310811415e-05,-9.618286394019363e-06)
sum e = 0.06204670494377176
sum de = 0.0014207870554010225
Info: cfl dt = 0.003872911927807968 cfl multiplier : 0.9999999999999986 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6321e+05 | 100000 | 1 | 6.127e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 23.690210068730874 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.2940320874808586, dt = 0.003872911927807968 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.23 us (1.9%)
patch tree reduce : 1.66 us (0.5%)
gen split merge : 881.00 ns (0.3%)
split / merge op : 0/0
apply split merge : 1.34 us (0.4%)
LB compute : 313.38 us (94.0%)
LB move op cnt : 0
LB apply : 3.55 us (1.1%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.04 us (62.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (9.374796567104399e-05,-0.00010456897149700348,-3.580160898534492e-06)
sum a = (0.0008701995040148625,7.897828261416478e-05,-9.502059351462311e-06)
sum e = 0.06205150551837552
sum de = 0.0014013376706070145
Info: cfl dt = 0.003980919963886982 cfl multiplier : 0.9999999999999991 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.5863e+05 | 100000 | 1 | 6.304e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 22.116357467727802 (tsim/hr) [sph::Model][rank=0]
---------------- t = 0.29790499940866655, dt = 0.00209500059133344 ----------------
Info: Summary (strategy = round robin): [LoadBalance][rank=0]
- strategy "psweep" : max = 100000.0 min = 100000.0 factor = 1
- strategy "round robin" : max = 95000.0 min = 95000.0 factor = 0.95
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 100000
max = 100000
avg = 100000
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.82 us (1.6%)
patch tree reduce : 1.17 us (0.3%)
gen split merge : 841.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1.10 us (0.3%)
LB compute : 349.45 us (94.9%)
LB move op cnt : 0
LB apply : 3.70 us (1.0%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.08 us (63.2%)
Info: free boundaries skipping geometry update [PositionUpdated][rank=0]
Info: conservation infos : [sph::Model][rank=0]
sum v = (9.558120303498046e-05,-0.00010434714559714302,-3.5998426499449536e-06)
sum a = (0.0008725845984885929,9.490030561694289e-05,-9.438087467907834e-06)
sum e = 0.06204866933005184
sum de = 0.001391421382163999
Info: cfl dt = 0.003945405570254498 cfl multiplier : 0.9999999999999994 [sph::Model][rank=0]
Info: Timestep perf report: [sph::Model][rank=0]
+======+============+========+========+===========+======+=============+=============+=============+
| rank | rate (N/s) | Nobj | Npatch | tstep | MPI | alloc d% h% | mem (max) d | mem (max) h |
+======+============+========+========+===========+======+=============+=============+=============+
| 0 | 1.6311e+05 | 100000 | 1 | 6.131e-01 | 0.0% | 0.0% 0.0% | 2.15 GB | 2.15 GB |
+------+------------+--------+--------+-----------+------+-------------+-------------+-------------+
Info: estimated rate : 12.301780267239161 (tsim/hr) [sph::Model][rank=0]
Info: iteration since start : 87 [SPH][rank=0]
Info: time since start : 521.163851614 (s) [SPH][rank=0]
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000015.vtk [VTK Dump][rank=0]
- took 5.44 ms, bandwidth = 1.03 GB/s
Info: Dumping state to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000015.sham [SPH][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 6.34 us (58.0%)
Info: dump to _to_trash/circular_disc_pn_pot_100000/dump/dump_0000015.sham [Shamrock Dump][rank=0]
- took 4.62 ms, bandwidth = 2.77 GB/s
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_normal_0000030.json
Info: compute_column_integ field_name: rho, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 1.96 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_integ_hollywood_0000030.json
Info: compute_slice field_name: rho, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 515.86 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 511.05 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/rho_slice_0000030.json
Info: compute_slice field_name: vxyz, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 623.01 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 515.25 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/v_z_slice_0000030.json
Using numba for velocity profile in SliceDiffVthetaProfile
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.7156728240000001 s
Info: compute_slice took 1.64 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 889.34 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/relative_azy_velocity_slice_0000030.json
Using numba for custom getter in VerticalShearGradient
Info: compute_slice field_name: custom, positions count: 2073600 [sph::CartesianRender][rank=0]
sph::RenderFieldGetter compute custom field took : 0.354074957 s
Info: compute_slice took 1.30 s [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 902.97 ms [sph::CartesianRender][rank=0]
/usr/local/lib/python3.10/dist-packages/shamrock/utils/analysis/StandardPlotHelper.py:59: RuntimeWarning: invalid value encountered in divide
ret = field / normalization
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/vertical_shear_gradient_slice_0000030.json
Info: compute_slice field_name: dt_part, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 892.89 ms [sph::CartesianRender][rank=0]
Info: compute_slice field_name: unity, positions count: 2073600 [sph::CartesianRender][rank=0]
Info: compute_slice took 916.44 ms [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/dt_part_slice_0000030.json
Info: compute_column_integ field_name: inv_hpart, rays count: 1048576 [sph::CartesianRender][rank=0]
Info: compute_column_integ took 2.00 s [sph::CartesianRender][rank=0]
Saving data to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000030.npy
Saving metadata to _to_trash/circular_disc_pn_pot_100000/analysis/plots/particle_count_0000030.json
Saving perf history to _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Plot generation#
Load the on-the-fly analysis after the run to make the plots (everything in this section can be in another file)
533 import matplotlib
534 import matplotlib.pyplot as plt
535
536 face_on_render_kwargs = {
537 "x_unit": "au",
538 "y_unit": "au",
539 "time_unit": "year",
540 "x_label": "x",
541 "y_label": "y",
542 }
543
544 column_density_plot.render_all(
545 **face_on_render_kwargs,
546 field_unit="kg.m^-2",
547 field_label="$\\int \\rho \\, \\mathrm{{d}} z$",
548 vmin=1,
549 vmax=1e4,
550 norm="log",
551 )
552
553 column_density_plot_hollywood.render_all(
554 **face_on_render_kwargs,
555 field_unit="kg.m^-2",
556 field_label="$\\int \\rho \\, \\mathrm{{d}} z$",
557 vmin=1,
558 vmax=1e4,
559 norm="log",
560 holywood_mode=True,
561 )
562
563 vertical_density_plot.render_all(
564 **face_on_render_kwargs,
565 field_unit="kg.m^-3",
566 field_label="$\\rho$",
567 vmin=1e-10,
568 vmax=1e-6,
569 norm="log",
570 )
571
572 v_z_slice_plot.render_all(
573 **face_on_render_kwargs,
574 field_unit="m.s^-1",
575 field_label="$\\mathrm{v}_z$",
576 cmap="seismic",
577 cmap_bad_color="white",
578 vmin=-300,
579 vmax=300,
580 )
581
582 relative_azy_velocity_slice_plot.render_all(
583 **face_on_render_kwargs,
584 field_unit="m.s^-1",
585 field_label="$\\mathrm{v}_{\\theta} - v_k$",
586 cmap="seismic",
587 cmap_bad_color="white",
588 vmin=-300,
589 vmax=300,
590 )
591
592 vertical_shear_gradient_slice_plot.render_all(
593 **face_on_render_kwargs,
594 field_unit="yr^-1",
595 field_label="${{\\partial R \\Omega}}/{{\\partial z}}$",
596 cmap="seismic",
597 cmap_bad_color="white",
598 vmin=-1,
599 vmax=1,
600 )
601
602 dt_part_slice_plot.render_all(
603 **face_on_render_kwargs,
604 field_unit="year",
605 field_label="$\\Delta t$",
606 vmin=1e-4,
607 vmax=1,
608 norm="log",
609 contour_list=[1e-4, 1e-3, 1e-2, 1e-1, 1],
610 )
611
612 column_particle_count_plot.render_all(
613 **face_on_render_kwargs,
614 field_unit=None,
615 field_label="$\\int \\frac{1}{h_\\mathrm{part}} \\, \\mathrm{{d}} z$",
616 vmin=1,
617 vmax=1e2,
618 norm="log",
619 contour_list=[1, 10, 100, 1000],
620 )
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_normal_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_integ_hollywood_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_rho_slice_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_v_z_slice_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_relative_azy_velocity_slice_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_vertical_shear_gradient_slice_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_dt_part_slice_0000030.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000000.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000001.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000002.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000003.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000004.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000005.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000006.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000007.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000008.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000009.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000010.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000011.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000012.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000013.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000014.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000015.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000016.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000017.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000018.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000019.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000020.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000021.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000022.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000023.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000024.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000025.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000026.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000027.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000028.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000029.png
Saving plot to _to_trash/circular_disc_pn_pot_100000/analysis/plots/plot_particle_count_0000030.png
Make gif for the doc (plot_to_gif.py)#
Convert PNG sequence to Image sequence in mpl
629 render_gif = True
Do it for rho integ
634 if render_gif:
635 ani = column_density_plot.render_gif(gif_filename="rho_integ.gif", save_animation=True)
636 if ani is not None:
637 plt.show()
Same but in hollywood
642 if render_gif:
643 ani = column_density_plot_hollywood.render_gif(
644 gif_filename="rho_integ_hollywood.gif", save_animation=True
645 )
646 if ani is not None:
647 plt.show()
For the vertical density plot
651 if render_gif and shamrock.sys.world_rank() == 0:
652 ani = vertical_density_plot.render_gif(gif_filename="rho_slice.gif", save_animation=True)
653 if ani is not None:
654 plt.show()
Make a gif from the plots
659 if render_gif and shamrock.sys.world_rank() == 0:
660 ani = v_z_slice_plot.render_gif(gif_filename="v_z_slice.gif", save_animation=True)
661 if ani is not None:
662 plt.show()
Make a gif from the plots
667 if render_gif and shamrock.sys.world_rank() == 0:
668 ani = relative_azy_velocity_slice_plot.render_gif(
669 gif_filename="relative_azy_velocity_slice.gif", save_animation=True
670 )
671 if ani is not None:
672 plt.show()
Make a gif from the plots
676 if render_gif and shamrock.sys.world_rank() == 0:
677 ani = vertical_shear_gradient_slice_plot.render_gif(
678 gif_filename="vertical_shear_gradient_slice.gif", save_animation=True
679 )
680 if ani is not None:
681 plt.show()
Make a gif from the plots
685 if render_gif and shamrock.sys.world_rank() == 0:
686 ani = dt_part_slice_plot.render_gif(gif_filename="dt_part_slice.gif", save_animation=True)
687 if ani is not None:
688 plt.show()
Make a gif from the plots
692 if render_gif and shamrock.sys.world_rank() == 0:
693 ani = column_particle_count_plot.render_gif(
694 gif_filename="particle_count.gif", save_animation=True
695 )
696 if ani is not None:
697 plt.show()
helper function to load data from JSON files
702 def load_data_from_json(filename, key):
703 filepath = os.path.join(analysis_folder, filename)
704 with open(filepath, "r") as fp:
705 data = json.load(fp)[key]
706 t = [d["t"] for d in data]
707 values = [d[key] for d in data]
708 return t, values
load the json file for barycenter
713 t, barycenter = load_data_from_json("barycenter.json", "barycenter")
714 barycenter_x = [d[0] for d in barycenter]
715 barycenter_y = [d[1] for d in barycenter]
716 barycenter_z = [d[2] for d in barycenter]
717
718 plt.figure(figsize=(8, 5), dpi=200)
719
720 plt.plot(t, barycenter_x)
721 plt.plot(t, barycenter_y)
722 plt.plot(t, barycenter_z)
723 plt.xlabel("t")
724 plt.ylabel("barycenter")
725 plt.legend(["x", "y", "z"])
726 plt.savefig(analysis_folder + "barycenter.png")
727 plt.show()

load the json file for disc_mass
731 t, disc_mass = load_data_from_json("disc_mass.json", "disc_mass")
732
733 plt.figure(figsize=(8, 5), dpi=200)
734
735 plt.plot(t, disc_mass)
736 plt.xlabel("t")
737 plt.ylabel("disc_mass")
738 plt.savefig(analysis_folder + "disc_mass.png")
739 plt.show()

load the json file for total_momentum
743 t, total_momentum = load_data_from_json("total_momentum.json", "total_momentum")
744 total_momentum_x = [d[0] for d in total_momentum]
745 total_momentum_y = [d[1] for d in total_momentum]
746 total_momentum_z = [d[2] for d in total_momentum]
747
748 plt.figure(figsize=(8, 5), dpi=200)
749
750 plt.plot(t, total_momentum_x)
751 plt.plot(t, total_momentum_y)
752 plt.plot(t, total_momentum_z)
753 plt.xlabel("t")
754 plt.ylabel("total_momentum")
755 plt.legend(["x", "y", "z"])
756 plt.savefig(analysis_folder + "total_momentum.png")
757 plt.show()

load the json file for energies
761 t, potential_energy = load_data_from_json("potential_energy.json", "potential_energy")
762 _, kinetic_energy = load_data_from_json("kinetic_energy.json", "kinetic_energy")
763
764 total_energy = [p + k for p, k in zip(potential_energy, kinetic_energy)]
765
766 plt.figure(figsize=(8, 5), dpi=200)
767 plt.plot(t, potential_energy)
768 plt.plot(t, kinetic_energy)
769 plt.plot(t, total_energy)
770 plt.xlabel("t")
771 plt.ylabel("energy")
772 plt.legend(["potential_energy", "kinetic_energy", "total_energy"])
773 plt.savefig(analysis_folder + "energies.png")
774 plt.show()

Plot the performance history (Switch close_plots to True if doing a long run)
778 perf_analysis.plot_perf_history(close_plots=False)
779 plt.show()
Plotting perf history from _to_trash/circular_disc_pn_pot_100000/analysis/perf_history.json
Total running time of the script: (15 minutes 12.811 seconds)
Estimated memory usage: 2650 MB
