Tracking particles by id in SPH#

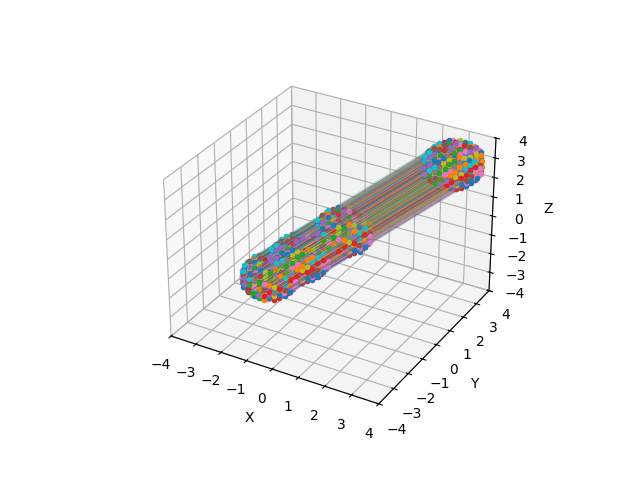

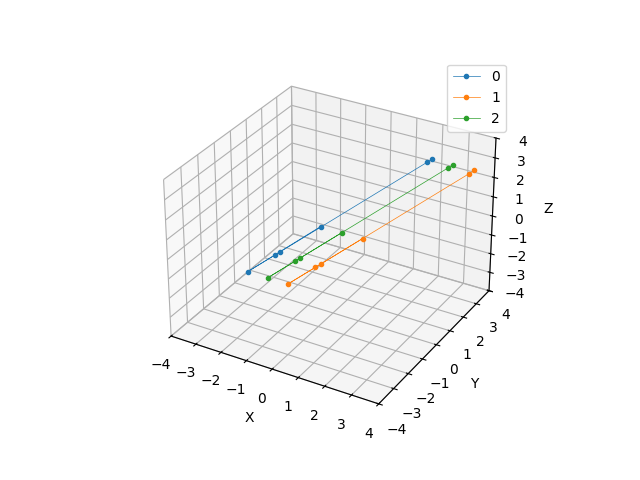

This simple example shows how to track particles by id
9 import shamrock
10
11 # Particle tracking is an experimental feature
12 shamrock.enable_experimental_features()
13
14 # If we use the shamrock executable to run this script instead of the python interpreter,
15 # we should not initialize the system as the shamrock executable needs to handle specific MPI logic
16 if not shamrock.sys.is_initialized():
17 shamrock.change_loglevel(1)
18 shamrock.sys.init("0:0")
19
20
21 def is_in_sphere(pt):
22 x, y, z = pt
23 return (x**2 + y**2 + z**2) < 1
Setup parameters
Setup
41 ctx = shamrock.Context()
42 ctx.pdata_layout_new()
43
44 model = shamrock.get_Model_SPH(context=ctx, vector_type="f64_3", sph_kernel="M4")
45
46 cfg = model.gen_default_config()
47 # cfg.set_artif_viscosity_VaryingMM97(alpha_min = 0.1,alpha_max = 1,sigma_decay = 0.1, alpha_u = 1, beta_AV = 2)
48 # cfg.set_artif_viscosity_ConstantDisc(alpha_u=alpha_u, alpha_AV=alpha_AV, beta_AV=beta_AV)
49 # cfg.set_eos_locally_isothermalLP07(cs0=cs0, q=q, r0=r0)
50 cfg.set_artif_viscosity_VaryingCD10(
51 alpha_min=0.0, alpha_max=1, sigma_decay=0.1, alpha_u=1, beta_AV=2
52 )
53 cfg.set_particle_tracking(True)
54 cfg.set_boundary_periodic()
55 cfg.set_eos_adiabatic(1.00001)
56 cfg.print_status()
57 model.set_solver_config(cfg)
58
59 model.init_scheduler(int(1e7), 1)
60
61 bmin = (-bsize, -bsize, -bsize)
62 bmax = (bsize, bsize, bsize)
63 model.resize_simulation_box(bmin, bmax)
64
65 model.set_particle_mass(pmass)
66
67 setup = model.get_setup()
68 lat = setup.make_generator_lattice_hcp(dr, (-bsize, -bsize, -bsize), (bsize, bsize, bsize))
69
70 thesphere = setup.make_modifier_filter(parent=lat, filter=is_in_sphere)
71
72 offset_sphere = setup.make_modifier_offset(
73 parent=thesphere, offset_position=(3.0, 3.0, 3.0), offset_velocity=(-1.0, -1.0, -1.0)
74 )
75
76 setup.apply_setup(offset_sphere)
77
78 model.set_value_in_a_box("uint", "f64", 1, bmin, bmax)
79
80 model.set_cfl_cour(C_cour)
81 model.set_cfl_force(C_force)
82
83 model.change_htolerance(1.3)
84 model.timestep()
85 model.change_htolerance(1.1)
----- SPH Solver configuration -----
[
{
"artif_viscosity": {
"alpha_max": 1.0,
"alpha_min": 0.0,
"alpha_u": 1.0,
"av_type": "varying_cd10",
"beta_AV": 2.0,
"sigma_decay": 0.1
},
"boundary_config": {
"bc_type": "periodic"
},
"cfl_config": {
"cfl_cour": 0.0,
"cfl_force": 0.0,
"cfl_multiplier_stiffness": 2.0,
"eta_sink": 0.05
},
"combined_dtdiv_divcurlv_compute": false,
"debug_dump_filename": "",
"do_debug_dump": false,
"enable_particle_reordering": false,
"eos_config": {
"Tvec": "f64_3",
"eos_type": "adiabatic",
"gamma": 1.00001
},
"epsilon_h": 1e-06,
"ext_force_config": {
"force_list": []
},
"gpart_mass": 0.0,
"h_iter_per_subcycles": 50,
"h_max_subcycles_count": 100,
"htol_up_coarse_cycle": 1.1,
"htol_up_fine_cycle": 1.1,
"kernel_id": "M4<f64>",
"mhd_config": {
"mhd_type": "none"
},
"particle_killing": [],
"particle_reordering_step_freq": 1000,
"show_neigh_stats": false,
"smoothing_length_config": {
"type": "density_based"
},
"time_state": {
"cfl_multiplier": 0.01,
"dt_sph": 0.0,
"time": 0.0
},
"tree_reduction_level": 3,
"type_id": "sycl::vec<f64,3>",
"unit_sys": null,
"use_two_stage_search": true
}
]
------------------------------------
---------------------------- WARNING ----------------------------
Warning: Experimental features are enabled
-----------------------------------------------------------------
Info: pushing data in scheduler, N = 735 [DataInserterUtility][rank=0]
Info: reattributing data ... [DataInserterUtility][rank=0]
Info: reattributing data done in 1690.36 us [DataInserterUtility][rank=0]
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 5.11 us (54.4%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1733.00 ns (0.4%)
patch tree reduce : 651.00 ns (0.1%)
gen split merge : 671.00 ns (0.2%)
split / merge op : 0/0
apply split merge : 1102.00 ns (0.3%)
LB compute : 423.38 us (97.5%)
LB move op cnt : 0
LB apply : 2.93 us (0.7%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.37 us (68.9%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1683.00 ns (0.5%)
patch tree reduce : 330.00 ns (0.1%)
gen split merge : 380.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 271.00 ns (0.1%)
LB compute : 333.35 us (93.6%)
LB move op cnt : 0
LB apply : 16.88 us (4.7%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.27 us (65.6%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1743.00 ns (0.5%)
patch tree reduce : 340.00 ns (0.1%)
gen split merge : 401.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 271.00 ns (0.1%)
LB compute : 353.07 us (97.9%)
LB move op cnt : 0
LB apply : 1853.00 ns (0.5%)
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Final load balancing step 0 of 3 [SPH setup][rank=0]
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.60 us (60.3%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1392.00 ns (0.4%)
patch tree reduce : 381.00 ns (0.1%)
gen split merge : 370.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 260.00 ns (0.1%)
LB compute : 321.15 us (97.8%)
LB move op cnt : 0
LB apply : 1753.00 ns (0.5%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.60 us (69.0%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1333.00 ns (0.4%)
patch tree reduce : 301.00 ns (0.1%)
gen split merge : 361.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 271.00 ns (0.1%)
LB compute : 331.06 us (97.9%)
LB move op cnt : 0
LB apply : 1814.00 ns (0.5%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.52 us (65.7%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1773.00 ns (0.5%)
patch tree reduce : 331.00 ns (0.1%)
gen split merge : 401.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 281.00 ns (0.1%)
LB compute : 327.72 us (97.8%)
LB move op cnt : 0
LB apply : 1713.00 ns (0.5%)
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Final load balancing step 1 of 3 [SPH setup][rank=0]
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.44 us (63.4%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1282.00 ns (0.4%)
patch tree reduce : 330.00 ns (0.1%)
gen split merge : 371.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 241.00 ns (0.1%)
LB compute : 335.35 us (98.0%)
LB move op cnt : 0
LB apply : 1753.00 ns (0.5%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.21 us (68.0%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1292.00 ns (0.4%)
patch tree reduce : 290.00 ns (0.1%)
gen split merge : 371.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 230.00 ns (0.1%)
LB compute : 333.09 us (97.9%)
LB move op cnt : 0
LB apply : 1844.00 ns (0.5%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.49 us (69.7%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1323.00 ns (0.4%)
patch tree reduce : 331.00 ns (0.1%)
gen split merge : 380.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 251.00 ns (0.1%)
LB compute : 306.45 us (97.8%)
LB move op cnt : 0
LB apply : 1743.00 ns (0.6%)
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Final load balancing step 2 of 3 [SPH setup][rank=0]
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.38 us (63.9%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1323.00 ns (0.4%)
patch tree reduce : 331.00 ns (0.1%)
gen split merge : 391.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 290.00 ns (0.1%)
LB compute : 313.66 us (97.8%)
LB move op cnt : 0
LB apply : 1794.00 ns (0.6%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.52 us (70.3%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1282.00 ns (0.4%)
patch tree reduce : 301.00 ns (0.1%)
gen split merge : 391.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 230.00 ns (0.1%)
LB compute : 310.71 us (97.9%)
LB move op cnt : 0
LB apply : 1794.00 ns (0.6%)
Info: Compute load ... [DataInserterUtility][rank=0]
Info: run scheduler step ... [DataInserterUtility][rank=0]
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.29 us (69.2%)
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 1624.00 ns (0.5%)
patch tree reduce : 321.00 ns (0.1%)
gen split merge : 380.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 241.00 ns (0.1%)
LB compute : 293.53 us (97.6%)
LB move op cnt : 0
LB apply : 1724.00 ns (0.6%)
Info: --------------------------------------------- [DataInserterUtility][rank=0]
Info: the setup took : 0.08758681800000001 s [SPH setup][rank=0]
Warning: .change_htolerance(val) is deprecated, [SPH][rank=0]
-> calling this is replaced internally by .change_htolerances(coarse=val, fine=min(val, 1.1))
see: https://shamrock-code.github.io/Shamrock/mkdocs/models/sph/smoothing_length_tolerance
---------------- t = 0, dt = 0 ----------------
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.51 us (1.0%)
patch tree reduce : 351.00 ns (0.1%)
gen split merge : 401.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 350.00 ns (0.1%)
LB compute : 349.00 us (97.2%)
LB move op cnt : 0
LB apply : 1983.00 ns (0.6%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.42 us (71.2%)
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.13 unconverged cnt = 735
Warning: High interface/patch volume ratio. [InterfaceGen][rank=0]
This can lead to high mpi overhead, try to increase the patch split crit
patch 0 high interf/patch volume: 0.20952380952380953
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.169 unconverged cnt = 735
Warning: High interface/patch volume ratio. [InterfaceGen][rank=0]
This can lead to high mpi overhead, try to increase the patch split crit
patch 0 high interf/patch volume: 0.39319727891156464
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.21970000000000003 unconverged cnt = 334
Warning: High interface/patch volume ratio. [InterfaceGen][rank=0]
This can lead to high mpi overhead, try to increase the patch split crit
patch 0 high interf/patch volume: 0.6585034013605442
Warning: smoothing length is not converged, rerunning the iterator ... [Smoothinglength][rank=0]
largest h = 0.28561000000000003 unconverged cnt = 2
Warning: High interface/patch volume ratio. [InterfaceGen][rank=0]
This can lead to high mpi overhead, try to increase the patch split crit
patch 0 high interf/patch volume: 1.23265306122449
Info: conservation infos : [sph::Model][rank=0]
sum v = (-735,-735,-735)
sum a = (-3.333921680392926e-18,-4.743384504624082e-20,-5.421010862427522e-19)
sum e = 1837.5
sum de = -5.095750210681871e-18
Info: CFL hydro = 0.1305431643141646 sink sink = inf [SPH][rank=0]
Info: cfl dt = 0.1305431643141646 cfl multiplier : 0.01 [sph::Model][rank=0]
Info: processing rate infos : [sph::Model][rank=0]
---------------------------------------------------------------------------------------
| rank | rate (N.s^-1) | Nobj | t compute (s) | MPI | alloc | mem (max) |
---------------------------------------------------------------------------------------
| 0 | 9.5590e+03 | 735 | 7.689e-02 | 0 % | 2 % | 128.66 MB |
---------------------------------------------------------------------------------------
Info: estimated rate : 0 (tsim/hr) [sph::Model][rank=0]
Warning: .change_htolerance(val) is deprecated, [SPH][rank=0]
-> calling this is replaced internally by .change_htolerances(coarse=val, fine=min(val, 1.1))
see: https://shamrock-code.github.io/Shamrock/mkdocs/models/sph/smoothing_length_tolerance
Init history table
90 part_history = []
91
92 data = ctx.collect_data()
93 print(data)
94
95 part_history = [{} for i in range(len(data["xyz"]))]
96 for i in range(len(data["xyz"])):
97 part_history[data["part_id"][i]] = {
98 "x": [data["xyz"][i][0]],
99 "y": [data["xyz"][i][1]],
100 "z": [data["xyz"][i][2]],
101 }
102
103
104 def append_to_history():
105 data = ctx.collect_data()
106
107 for i in range(len(data["xyz"])):
108 part_history[data["part_id"][i]]["x"].append(data["xyz"][i][0])
109 part_history[data["part_id"][i]]["y"].append(data["xyz"][i][1])
110 part_history[data["part_id"][i]]["z"].append(data["xyz"][i][2])
Info: collected : 1 patches [PatchScheduler][rank=0]
adding -> xyz
adding -> vxyz
adding -> axyz
adding -> axyz_ext
adding -> hpart
adding -> part_id
adding -> uint
adding -> duint
adding -> alpha_AV
adding -> divv
adding -> dtdivv
adding -> curlv
adding -> soundspeed
{'xyz': array([[2.3 , 2.48038476, 2.67340137],
[2.4 , 2.30717968, 2.67340137],
[2.3 , 2.3649147 , 2.83670068],
...,
[3.5 , 3.8660254 , 3. ],
[3.5 , 3.75055535, 3.16329932],
[3.5 , 3.51961524, 3.65319726]], shape=(735, 3)), 'vxyz': array([[-1., -1., -1.],
[-1., -1., -1.],
[-1., -1., -1.],
...,
[-1., -1., -1.],
[-1., -1., -1.],
[-1., -1., -1.]], shape=(735, 3)), 'axyz': array([[-6.07564493e-05, -4.19305177e-05, -3.33234503e-05],
[-5.26819605e-05, -7.21000314e-05, -3.19971073e-05],
[-6.54663258e-05, -6.30451355e-05, -9.79795900e-06],
...,
[ 5.02839018e-05, 8.56177477e-05, 6.48509600e-21],
[ 4.24596463e-05, 6.12386886e-05, 1.61018811e-05],
[ 3.96519461e-05, 5.35753755e-05, 6.75477378e-05]],
shape=(735, 3)), 'axyz_ext': array([[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.],
...,
[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.]], shape=(735, 3)), 'hpart': array([0.24340982, 0.26266205, 0.25527829, 0.25617457, 0.26581476,
0.24340982, 0.25653232, 0.24634686, 0.26341738, 0.25208943,
0.22243493, 0.23538249, 0.23538249, 0.21573943, 0.2152501 ,
0.2152501 , 0.2164275 , 0.21643851, 0.21403115, 0.26581476,
0.23478299, 0.26206811, 0.2228041 , 0.26133329, 0.24182531,
0.25208943, 0.22852822, 0.2164275 , 0.22669761, 0.21424214,
0.22104652, 0.21461491, 0.25425536, 0.23756227, 0.22276011,
0.26961698, 0.21620613, 0.21666461, 0.21402392, 0.21403115,
0.25262937, 0.22676156, 0.25262937, 0.22676156, 0.21605986,
0.26362011, 0.23688837, 0.2162894 , 0.23467853, 0.21453074,
0.21643851, 0.21509783, 0.21402392, 0.21408423, 0.21403115,
0.21402392, 0.21402392, 0.21402392, 0.21408423, 0.21402392,
0.21402392, 0.21430489, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.25527829,
0.22876116, 0.2414449 , 0.24340982, 0.26266205, 0.25653232,
0.24634686, 0.22882381, 0.24340982, 0.24830696, 0.22243493,
0.26341738, 0.25208943, 0.2152501 , 0.2152501 , 0.21421868,
0.23538249, 0.23538249, 0.21573943, 0.21478168, 0.21403115,
0.2164275 , 0.21643851, 0.25617457, 0.26581476, 0.27727148,
0.24182531, 0.2414449 , 0.26133329, 0.21759492, 0.22104652,
0.21459018, 0.21461491, 0.21402392, 0.22852822, 0.25208943,
0.2164275 , 0.22669761, 0.21424214, 0.22276011, 0.26961698,
0.22789307, 0.25425536, 0.23756227, 0.21459018, 0.21403115,
0.21402392, 0.21620613, 0.21666461, 0.21402392, 0.26581476,
0.23478299, 0.26206811, 0.2228041 , 0.21403115, 0.21402392,
0.21402392, 0.21402392, 0.21643851, 0.21402392, 0.21509783,
0.21408423, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21408423, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21430489, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.22676156, 0.25262937, 0.22676156,
0.21605986, 0.25262937, 0.2162894 , 0.26362011, 0.23688837,
0.21453074, 0.23467853, 0.26206811, 0.23478299, 0.2500656 ,
0.26596674, 0.22866132, 0.25483063, 0.24970579, 0.22896197,
0.24704704, 0.22669761, 0.2164275 , 0.21424214, 0.21666461,
0.21481585, 0.21421868, 0.24346819, 0.21504804, 0.22789226,
0.24704704, 0.25483063, 0.26513963, 0.22851073, 0.26362011,
0.25306901, 0.23688837, 0.2162894 , 0.2228041 , 0.21495114,
0.26362011, 0.2228041 , 0.23688837, 0.23005256, 0.21453074,
0.21453074, 0.25262937, 0.2162894 , 0.21430489, 0.21402392,
0.21408423, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21666461, 0.21430489,
0.21421868, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21408423,
0.21402392, 0.26206811, 0.23478299, 0.26581476, 0.22676156,
0.22669761, 0.2164275 , 0.22852853, 0.21424214, 0.21462328,
0.25208943, 0.26266205, 0.24260903, 0.22104652, 0.21643851,
0.2164275 , 0.21402392, 0.21403115, 0.23538249, 0.24340982,
0.25527829, 0.2152501 , 0.24970579, 0.25422217, 0.22227764,
0.22896197, 0.26596674, 0.22866132, 0.25483063, 0.24413242,
0.24704704, 0.21481585, 0.21517691, 0.21403115, 0.21421868,
0.22669761, 0.2164275 , 0.21424214, 0.21666461, 0.22789226,
0.21497721, 0.24346819, 0.21504804, 0.26206811, 0.23478299,
0.2500656 , 0.24393798, 0.22851073, 0.24660962, 0.24704704,
0.25483063, 0.26513963, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21430489,
0.21402392, 0.21408423, 0.21402392, 0.21402392, 0.21402392,
0.21421868, 0.21402392, 0.21402392, 0.21666461, 0.21430489,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21408423, 0.2162894 , 0.2228041 , 0.21495114,
0.26362011, 0.25306901, 0.23688837, 0.2228041 , 0.26362011,
0.21453074, 0.21453074, 0.23688837, 0.23005256, 0.2162894 ,
0.25262937, 0.21497721, 0.21462328, 0.21759492, 0.21402392,
0.2164275 , 0.22669761, 0.22852853, 0.21424214, 0.27783542,
0.24260903, 0.2414449 , 0.22104652, 0.26266205, 0.25208943,
0.21403115, 0.21459018, 0.21402392, 0.21643851, 0.2164275 ,
0.21402392, 0.25527829, 0.22876116, 0.2152501 , 0.24340982,
0.23538249, 0.26206811, 0.23478299, 0.26581476, 0.22676156,
0.2500656 , 0.2228041 , 0.26206811, 0.23478299, 0.24279659,
0.23756227, 0.25425536, 0.26961698, 0.21782554, 0.22276011,
0.21666461, 0.21465663, 0.21402392, 0.21620613, 0.21403115,
0.26133329, 0.24182531, 0.22669761, 0.21424214, 0.22852822,
0.21461491, 0.25306901, 0.23688837, 0.26362011, 0.21495114,
0.2162894 , 0.23005256, 0.23467853, 0.21453074, 0.25262937,
0.22676156, 0.25262937, 0.21605986, 0.21408423, 0.21402392,
0.21402392, 0.21430489, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21408423, 0.21643851, 0.21402392, 0.21402392,
0.21403115, 0.21402392, 0.21408423, 0.21402392, 0.26581476,
0.25208943, 0.26266205, 0.2164275 , 0.24340982, 0.22104652,
0.25527829, 0.25617457, 0.22676156, 0.26581476, 0.23538249,
0.21509783, 0.21573943, 0.23538249, 0.2152501 , 0.21402392,
0.2152501 , 0.21402392, 0.21643851, 0.2164275 , 0.21403115,
0.24340982, 0.24634686, 0.25653232, 0.25208943, 0.26341738,
0.22243493, 0.26961698, 0.22789307, 0.21782554, 0.22276011,
0.23756227, 0.24279659, 0.25425536, 0.21421868, 0.21403115,
0.21402392, 0.21459018, 0.21465663, 0.21666461, 0.21402392,
0.21620613, 0.2414449 , 0.24182531, 0.26133329, 0.21461491,
0.21402392, 0.21759492, 0.22669761, 0.21424214, 0.22852822,
0.2500656 , 0.2228041 , 0.26206811, 0.23478299, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21408423,
0.21402392, 0.21402392, 0.21430489, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21403115, 0.21402392, 0.21408423, 0.21643851,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21408423,
0.21495114, 0.2162894 , 0.25306901, 0.23688837, 0.26362011,
0.21453074, 0.23005256, 0.23467853, 0.22676156, 0.25262937,
0.21605986, 0.25262937, 0.27727148, 0.2414449 , 0.22104652,
0.21459018, 0.25527829, 0.22876116, 0.26266205, 0.25208943,
0.2164275 , 0.24340982, 0.26581476, 0.2152501 , 0.21421868,
0.21402392, 0.2152501 , 0.23538249, 0.21573943, 0.21509783,
0.23538249, 0.21402392, 0.21403115, 0.21478168, 0.21402392,
0.21643851, 0.2164275 , 0.24634686, 0.22882381, 0.25653232,
0.24340982, 0.22243493, 0.24830696, 0.25208943, 0.26341738,
0.25617457, 0.22676156, 0.26581476, 0.29617995, 0.23005256,
0.23467853, 0.23688837, 0.21420737, 0.21453074, 0.21453074,
0.25262937, 0.21605986, 0.2162894 , 0.23688837, 0.25306901,
0.21495114, 0.2162894 , 0.26362011, 0.2228041 , 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21408423,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21408423, 0.21402392, 0.21402392, 0.21430489, 0.21402392,
0.21402392, 0.22676156, 0.25617457, 0.26581476, 0.23478299,
0.21509783, 0.21402392, 0.21573943, 0.21643851, 0.2164275 ,
0.21402392, 0.21403115, 0.23538249, 0.24340982, 0.2152501 ,
0.24634686, 0.25527829, 0.21424214, 0.22669761, 0.22852853,
0.21462328, 0.25208943, 0.26266205, 0.22104652, 0.26362011,
0.23478299, 0.2228041 , 0.26206811, 0.2500656 , 0.21430489,
0.21424214, 0.21666461, 0.21402392, 0.22669761, 0.2164275 ,
0.21402392, 0.21421868, 0.21481585, 0.21504804, 0.21666461,
0.24346819, 0.21421868, 0.22789226, 0.22866132, 0.25483063,
0.26596674, 0.22896197, 0.24970579, 0.24704704, 0.26206811,
0.25483063, 0.2164275 , 0.26513963, 0.24704704, 0.22851073,
0.24260903, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21408423, 0.21402392, 0.21402392,
0.21402392, 0.21402392, 0.21402392, 0.21402392, 0.21402392,
0.21402392, 0.21408423, 0.21402392, 0.21402392, 0.21430489,
0.21402392, 0.21420737, 0.21453074, 0.21453074, 0.23005256,
0.29617995, 0.23467853, 0.23688837, 0.21605986, 0.2162894 ,
0.25262937, 0.21495114, 0.2162894 , 0.23688837, 0.25306901,
0.2228041 , 0.26362011, 0.21402392, 0.21402392, 0.21421868,
0.21403115, 0.21459018, 0.21402392, 0.21509783, 0.21573943,
0.21643851, 0.2164275 , 0.22876116, 0.2152501 , 0.24634686,
0.25527829, 0.24340982, 0.23538249, 0.21402392, 0.21462328,
0.21759492, 0.21424214, 0.22669761, 0.22852853, 0.2414449 ,
0.22104652, 0.26266205, 0.25208943, 0.22676156, 0.25617457,
0.26581476, 0.23478299, 0.21403115, 0.21402392, 0.21402392,
0.21421868, 0.21481585, 0.21517691, 0.21424214, 0.21430489,
0.21402392, 0.21666461, 0.22669761, 0.2164275 , 0.21497721,
0.21421868, 0.22789226, 0.21504804, 0.21666461, 0.24346819,
0.22227764, 0.22896197, 0.24970579, 0.25422217, 0.22866132,
0.25483063, 0.26596674, 0.24413242, 0.24704704, 0.23478299,
0.2228041 , 0.26206811, 0.26362011, 0.2500656 , 0.21497721,
0.22851073, 0.24660962, 0.24393798, 0.2164275 , 0.25483063,
0.26513963, 0.24704704, 0.27783542, 0.24260903, 0.26206811]), 'part_id': array([704, 660, 14, 475, 504, 685, 34, 57, 724, 332, 81, 298, 313,
683, 39, 55, 729, 330, 79, 489, 492, 460, 488, 715, 68, 277,
663, 702, 280, 706, 12, 16, 318, 712, 65, 24, 659, 276, 701,
11, 99, 478, 111, 502, 506, 105, 96, 474, 108, 501, 316, 296,
688, 300, 60, 37, 42, 727, 335, 732, 84, 312, 682, 295, 54,
36, 329, 726, 78, 196, 419, 375, 619, 575, 216, 239, 400, 600,
443, 263, 639, 177, 221, 237, 398, 143, 158, 598, 448, 261, 644,
175, 530, 559, 430, 250, 433, 630, 378, 194, 417, 198, 421, 578,
122, 617, 125, 621, 247, 206, 429, 163, 627, 374, 193, 416, 574,
121, 616, 544, 547, 515, 543, 242, 403, 219, 224, 161, 603, 141,
145, 446, 266, 451, 642, 180, 647, 236, 397, 218, 157, 597, 140,
260, 445, 174, 641, 533, 350, 557, 561, 362, 529, 356, 347, 556,
359, 484, 455, 468, 690, 653, 306, 0, 48, 676, 272, 695, 651,
304, 5, 46, 290, 674, 30, 720, 323, 667, 72, 87, 103, 90,
458, 482, 486, 95, 471, 100, 86, 454, 481, 92, 467, 270, 656,
309, 693, 274, 698, 3, 51, 8, 679, 288, 292, 28, 32, 650,
303, 269, 692, 45, 2, 673, 287, 27, 495, 498, 463, 494, 326,
718, 670, 722, 75, 285, 711, 19, 22, 322, 666, 717, 71, 282,
708, 62, 18, 182, 405, 368, 230, 605, 568, 151, 391, 591, 187,
410, 366, 228, 117, 610, 566, 149, 212, 389, 135, 589, 539, 510,
523, 439, 254, 382, 635, 168, 582, 371, 185, 408, 233, 190, 413,
571, 115, 608, 154, 119, 613, 394, 210, 214, 594, 133, 137, 365,
227, 184, 407, 565, 148, 114, 607, 388, 209, 588, 132, 513, 537,
541, 338, 354, 341, 526, 346, 509, 536, 351, 337, 522, 343, 437,
257, 385, 441, 633, 171, 585, 637, 424, 201, 427, 204, 626, 130,
253, 381, 436, 167, 581, 632, 244, 423, 200, 623, 127, 550, 553,
518, 549, 462, 491, 461, 490, 320, 714, 319, 25, 67, 66, 279,
662, 705, 661, 15, 713, 69, 278, 703, 664, 13, 107, 98, 106,
477, 476, 110, 109, 505, 97, 479, 112, 503, 315, 299, 687, 314,
684, 59, 41, 56, 731, 334, 331, 83, 80, 297, 317, 689, 38,
61, 728, 336, 85, 493, 281, 658, 707, 700, 17, 10, 473, 507,
500, 311, 301, 681, 294, 53, 43, 35, 733, 328, 725, 77, 686,
58, 40, 333, 730, 82, 207, 432, 249, 248, 629, 165, 164, 377,
197, 420, 376, 577, 124, 620, 576, 431, 251, 628, 195, 418, 379,
123, 618, 579, 517, 546, 516, 545, 241, 402, 223, 238, 399, 160,
602, 144, 159, 599, 450, 265, 262, 646, 179, 176, 220, 243, 404,
142, 162, 604, 447, 267, 643, 181, 532, 531, 358, 349, 357, 560,
361, 360, 534, 348, 558, 363, 434, 373, 199, 422, 192, 415, 573,
126, 622, 615, 548, 235, 396, 225, 217, 156, 596, 146, 139, 452,
259, 444, 648, 173, 640, 240, 401, 222, 601, 264, 449, 178, 645,
528, 562, 555, 563, 89, 102, 101, 457, 485, 456, 94, 470, 469,
88, 104, 483, 459, 93, 472, 273, 655, 308, 697, 652, 305, 7,
50, 47, 678, 291, 675, 31, 271, 694, 657, 310, 4, 52, 289,
680, 29, 497, 465, 464, 496, 325, 721, 669, 324, 668, 74, 73,
284, 710, 21, 64, 63, 719, 327, 671, 76, 283, 709, 20, 91,
453, 487, 480, 466, 275, 649, 302, 699, 268, 691, 9, 44, 1,
672, 293, 286, 33, 26, 654, 307, 696, 49, 6, 677, 499, 321,
723, 665, 716, 70, 23, 370, 189, 412, 232, 367, 229, 570, 118,
612, 153, 567, 150, 393, 213, 390, 593, 136, 590, 186, 409, 372,
234, 116, 609, 572, 155, 211, 395, 134, 595, 512, 540, 511, 340,
734, 353, 352, 525, 524, 345, 538, 514, 339, 355, 527, 344, 440,
256, 384, 255, 383, 636, 170, 584, 169, 583, 426, 203, 246, 245,
625, 129, 438, 258, 386, 634, 172, 586, 425, 202, 624, 128, 552,
520, 519, 551, 364, 191, 414, 226, 183, 406, 564, 120, 614, 147,
113, 606, 387, 215, 208, 587, 138, 131, 369, 231, 188, 411, 569,
152, 611, 392, 592, 508, 542, 535, 342, 521, 442, 252, 380, 435,
638, 166, 580, 631, 428, 205, 554], dtype=uint64), 'uint': array([1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1., 1.,
1., 1., 1., 1.]), 'duint': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0.]), 'alpha_AV': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0.]), 'divv': array([-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0., -0.,
-0., -0., -0., -0., -0., -0., -0.]), 'dtdivv': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0.]), 'curlv': array([[-0., -0., -0.],
[-0., -0., -0.],
[-0., -0., -0.],
...,
[-0., -0., -0.],
[-0., -0., -0.],
[-0., -0., -0.]], shape=(735, 3)), 'soundspeed': array([0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229,
0.00316229, 0.00316229, 0.00316229, 0.00316229, 0.00316229])}
Run the sim
115 for i in range(5):
116 model.timestep()
117 append_to_history()
---------------- t = 0, dt = 0.1305431643141646 ----------------
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 40.39 us (3.4%)
patch tree reduce : 1914.00 ns (0.2%)
gen split merge : 721.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 932.00 ns (0.1%)
LB compute : 1135.40 us (95.0%)
LB move op cnt : 0
LB apply : 3.84 us (0.3%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.13 us (69.2%)
Warning: High interface/patch volume ratio. [InterfaceGen][rank=0]
This can lead to high mpi overhead, try to increase the patch split crit
patch 0 high interf/patch volume: 0.6585034013605442
Info: conservation infos : [sph::Model][rank=0]
sum v = (-735.000000000001,-734.9999999999993,-735.0000000000003)
sum a = (-1.3938774180016766e-17,5.692061405548898e-19,2.8324781756183803e-18)
sum e = 1837.5000000169691
sum de = -4.526544070126981e-18
Info: CFL hydro = 4.438475603539535 sink sink = inf [SPH][rank=0]
Info: cfl dt = 4.438475603539535 cfl multiplier : 0.34 [sph::Model][rank=0]
Info: processing rate infos : [sph::Model][rank=0]
---------------------------------------------------------------------------------------
| rank | rate (N.s^-1) | Nobj | t compute (s) | MPI | alloc | mem (max) |
---------------------------------------------------------------------------------------
| 0 | 2.5117e+04 | 735 | 2.926e-02 | 0 % | 2 % | 128.66 MB |
---------------------------------------------------------------------------------------
Info: estimated rate : 16059.991591659416 (tsim/hr) [sph::Model][rank=0]
Info: collected : 1 patches [PatchScheduler][rank=0]
adding -> xyz
adding -> vxyz
adding -> axyz
adding -> axyz_ext
adding -> hpart
adding -> part_id
adding -> uint
adding -> duint
adding -> alpha_AV
adding -> divv
adding -> dtdivv
adding -> curlv
adding -> soundspeed
---------------- t = 0.1305431643141646, dt = 4.438475603539535 ----------------
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.17 us (0.9%)
patch tree reduce : 371.00 ns (0.1%)
gen split merge : 461.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 350.00 ns (0.1%)
LB compute : 360.87 us (97.3%)
LB move op cnt : 0
LB apply : 1994.00 ns (0.5%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.73 us (69.9%)
Info: conservation infos : [sph::Model][rank=0]
sum v = (-734.9999999999995,-735.0000000000001,-735)
sum a = (3.733721231496956e-18,2.0464316005663896e-18,-4.472333961502706e-19)
sum e = 1837.5000196165292
sum de = -5.421010862427522e-20
Info: CFL hydro = 7.326603651510656 sink sink = inf [SPH][rank=0]
Info: cfl dt = 7.326603651510656 cfl multiplier : 0.56 [sph::Model][rank=0]
Info: processing rate infos : [sph::Model][rank=0]
---------------------------------------------------------------------------------------
| rank | rate (N.s^-1) | Nobj | t compute (s) | MPI | alloc | mem (max) |
---------------------------------------------------------------------------------------
| 0 | 4.1133e+04 | 735 | 1.787e-02 | 0 % | 1 % | 128.66 MB |
---------------------------------------------------------------------------------------
Info: estimated rate : 894217.0430325401 (tsim/hr) [sph::Model][rank=0]
Info: collected : 1 patches [PatchScheduler][rank=0]
adding -> xyz
adding -> vxyz
adding -> axyz
adding -> axyz_ext
adding -> hpart
adding -> part_id
adding -> uint
adding -> duint
adding -> alpha_AV
adding -> divv
adding -> dtdivv
adding -> curlv
adding -> soundspeed
---------------- t = 4.5690187678536995, dt = 7.326603651510656 ----------------
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.17 us (0.8%)
patch tree reduce : 360.00 ns (0.1%)
gen split merge : 380.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 361.00 ns (0.1%)
LB compute : 373.44 us (97.4%)
LB move op cnt : 0
LB apply : 2.01 us (0.5%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.64 us (69.1%)
Info: conservation infos : [sph::Model][rank=0]
sum v = (-734.9999999999984,-734.9999999999984,-734.9999999999997)
sum a = (2.303929616531697e-18,5.759824041329242e-19,3.5236570605778894e-19)
sum e = 1837.500053070114
sum de = -7.047314121155779e-18
Info: CFL hydro = 7.86752877531102 sink sink = inf [SPH][rank=0]
Info: cfl dt = 7.86752877531102 cfl multiplier : 0.7066666666666667 [sph::Model][rank=0]
Info: processing rate infos : [sph::Model][rank=0]
---------------------------------------------------------------------------------------
| rank | rate (N.s^-1) | Nobj | t compute (s) | MPI | alloc | mem (max) |
---------------------------------------------------------------------------------------
| 0 | 4.1059e+04 | 735 | 1.790e-02 | 0 % | 1 % | 128.66 MB |
---------------------------------------------------------------------------------------
Info: estimated rate : 1473404.8936745862 (tsim/hr) [sph::Model][rank=0]
Info: collected : 1 patches [PatchScheduler][rank=0]
adding -> xyz
adding -> vxyz
adding -> axyz
adding -> axyz_ext
adding -> hpart
adding -> part_id
adding -> uint
adding -> duint
adding -> alpha_AV
adding -> divv
adding -> dtdivv
adding -> curlv
adding -> soundspeed
---------------- t = 11.895622419364354, dt = 7.86752877531102 ----------------
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.11 us (0.9%)
patch tree reduce : 370.00 ns (0.1%)
gen split merge : 381.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 351.00 ns (0.1%)
LB compute : 324.72 us (97.2%)
LB move op cnt : 0
LB apply : 1753.00 ns (0.5%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.35 us (70.1%)
Info: conservation infos : [sph::Model][rank=0]
sum v = (-735.000000000001,-735.0000000000011,-734.9999999999999)
sum a = (3.1238575094738597e-18,-7.318364664277155e-19,-5.421010862427522e-19)
sum e = 1837.5000585540129
sum de = 7.914675859144182e-18
Info: CFL hydro = 6.975215125196861 sink sink = inf [SPH][rank=0]
Info: cfl dt = 6.975215125196861 cfl multiplier : 0.8044444444444444 [sph::Model][rank=0]
Info: processing rate infos : [sph::Model][rank=0]
---------------------------------------------------------------------------------------
| rank | rate (N.s^-1) | Nobj | t compute (s) | MPI | alloc | mem (max) |
---------------------------------------------------------------------------------------
| 0 | 4.1243e+04 | 735 | 1.782e-02 | 0 % | 1 % | 128.66 MB |
---------------------------------------------------------------------------------------
Info: estimated rate : 1589294.6914687497 (tsim/hr) [sph::Model][rank=0]
Info: collected : 1 patches [PatchScheduler][rank=0]
adding -> xyz
adding -> vxyz
adding -> axyz
adding -> axyz_ext
adding -> hpart
adding -> part_id
adding -> uint
adding -> duint
adding -> alpha_AV
adding -> divv
adding -> dtdivv
adding -> curlv
adding -> soundspeed
---------------- t = 19.763151194675373, dt = 6.975215125196861 ----------------
Info: summary : [LoadBalance][rank=0]
Info: - strategy "psweep" : max = 735 min = 735 [LoadBalance][rank=0]
Info: - strategy "round robin" : max = 735 min = 735 [LoadBalance][rank=0]
Info: Loadbalance stats : [LoadBalance][rank=0]
npatch = 1
min = 735
max = 735
avg = 735
efficiency = 100.00%
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 3.10 us (0.8%)
patch tree reduce : 391.00 ns (0.1%)
gen split merge : 371.00 ns (0.1%)
split / merge op : 0/0
apply split merge : 351.00 ns (0.1%)
LB compute : 368.66 us (97.4%)
LB move op cnt : 0
LB apply : 1934.00 ns (0.5%)
Info: Scheduler step timings : [Scheduler][rank=0]
metadata sync : 2.35 us (70.4%)
Info: conservation infos : [sph::Model][rank=0]
sum v = (-734.9999999999999,-734.9999999999994,-734.9999999999999)
sum a = (-7.779150587583494e-18,2.439454888092385e-19,1.9244588561617704e-18)
sum e = 1837.50004199778
sum de = 4.4181238528784306e-18
Info: CFL hydro = 6.385989483406739 sink sink = inf [SPH][rank=0]
Info: cfl dt = 6.385989483406739 cfl multiplier : 0.8696296296296296 [sph::Model][rank=0]
Info: processing rate infos : [sph::Model][rank=0]
---------------------------------------------------------------------------------------
| rank | rate (N.s^-1) | Nobj | t compute (s) | MPI | alloc | mem (max) |
---------------------------------------------------------------------------------------
| 0 | 4.1279e+04 | 735 | 1.781e-02 | 0 % | 1 % | 128.66 MB |
---------------------------------------------------------------------------------------
Info: estimated rate : 1410261.3907505262 (tsim/hr) [sph::Model][rank=0]
Info: collected : 1 patches [PatchScheduler][rank=0]
adding -> xyz
adding -> vxyz
adding -> axyz
adding -> axyz_ext
adding -> hpart
adding -> part_id
adding -> uint
adding -> duint
adding -> alpha_AV
adding -> divv
adding -> dtdivv
adding -> curlv
adding -> soundspeed
Plot particles history
121 import matplotlib.pyplot as plt
122 import numpy as np
123 from mpl_toolkits.mplot3d import Axes3D
124
125 fig = plt.figure()
126 ax = fig.add_subplot(111, projection="3d")
127
128 for i in range(len(part_history)):
129 ax.plot(part_history[i]["x"], part_history[i]["y"], part_history[i]["z"], ".-", lw=0.2)
130
131 ax.set_xlabel("X")
132 ax.set_ylabel("Y")
133 ax.set_zlabel("Z")
134
135 ax.set_xlim(-4, 4)
136 ax.set_ylim(-4, 4)
137 ax.set_zlim(-4, 4)
138
139
140 fig = plt.figure()
141 ax = fig.add_subplot(111, projection="3d")
142
143 ax.plot(part_history[0]["x"], part_history[0]["y"], part_history[0]["z"], ".-", lw=0.5, label="0")
144 ax.plot(part_history[1]["x"], part_history[1]["y"], part_history[1]["z"], ".-", lw=0.5, label="1")
145 ax.plot(part_history[2]["x"], part_history[2]["y"], part_history[2]["z"], ".-", lw=0.5, label="2")
146
147 ax.set_xlabel("X")
148 ax.set_ylabel("Y")
149 ax.set_zlabel("Z")
150
151 ax.set_xlim(-4, 4)
152 ax.set_ylim(-4, 4)
153 ax.set_zlim(-4, 4)
154
155 ax.legend()
156
157 plt.show()
Total running time of the script: (0 minutes 2.054 seconds)
Estimated memory usage: 110 MB
